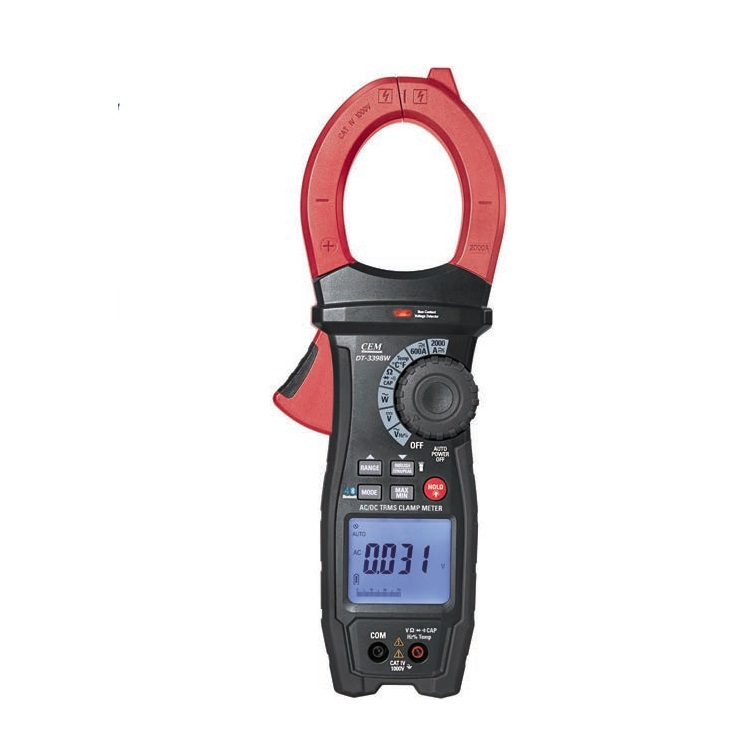

CEM DT-3398W AC/DC True RMS Clamp Meters (True RMS,AC/DC:2000A)

Jaw opening: 2" (52mm)

AC Current (Max Range Basic Accuracy Max. Resolution): 2000 A; ±(2.5%+5d); 1A

DC Current (Max Range Basic Accuracy Max. Resolution): 2000 A; ±(3.0%+4d); 1A

AC Voltage (Max Range Basic Accuracy Max. Resolution): 1000V; ±(0.8%+2d); 0.1mV

DC Voltage (Max Range Basic Accuracy Max. Resolution): 1000V; ±(1.0%+4d); 0.1mV

Resistance (Max Range Basic Accuracy Max. Resolution): 60MΩ; ±(1.0%+4d); 0.1Ω

Capacitance (Max Range Basic Accuracy Max. Resolution): 10mF; ±(3.0%+5d); 0.01nF

Electronic Frequency (Max Range Basic Accuracy Max. Resolution): 100kHz; ±(1.2%+3d); 0.01kHz

Temperature (Max Range Basic Accuracy Max. Resolution): 1000ºC/1832ºF; ±(3.0%+5d); 1ºC/ºF

Total Harmonic Distortion (Max Range Basic Accuracy Max. Resolution): 99.9%; 0.1%; ±(3% + 10d)

Harmonic distortion measurement (Max Range Basic Accuracy Max. Resolution): 99.9%; 0.1%; ±(5% + 10d)

Active Power (Max Range; Max. Resolution): 999.9KW; A.error x v.reading +/V.error x A.reading

Power Fartor (Max Range; Max. Resolution): -1.0 ~ 0, 0 ~ 1.0; ±(3% + 1d) *

Continuity check: Buzzer sounds at 50Ω

Diode test: Test current <0.5mA Max 3V

THDf/THDr: 25th harmonic

Bluetooth data transmission: Yes

Size (HxWxD): 308mm x 97mm x 47mm

Weight: 732g

Accessories:

1.5V AA x 3 batteries and Temperature probe, test leads, gift box with carrying case.
