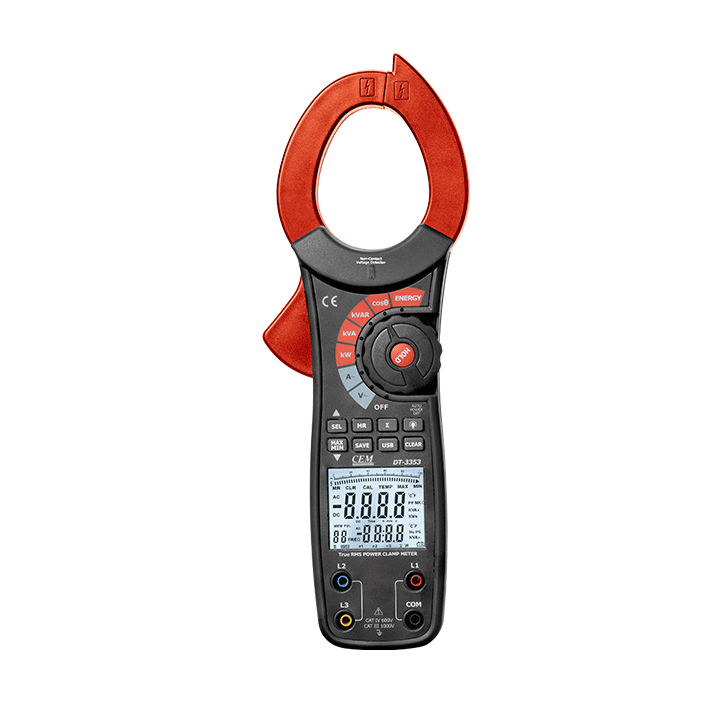

CEM DT-3353 AC Watt Clamp Meter (750kVA, AC-1000A/750V, True RMS)

Function: Range - Basic Accuracy

AC Voltage: 15V/100V/300V/750V ; ±(1.2%+5)

AC Current: 40A/100A/400A/1000A ; ±(2%+5)

True Power: 0.60kW—750kW ; ±(3%+5)

Apparent Power: 0.60kVA—750kVA ; ±(3%+5)

Reactive Power: 0.60kVAr—750kVAr ; ±(4%+20)of 15V/1000A else±(4%+5)

Power Factor: 0.3-1 ; ±(2%+20)

Phase Angle: 0°-90° ; ±1°

Frequency: 20Hz-200Hz ; ±(0.5%+5)

Energy: 1-9999kWh ; ±(3%+2)

Size (H x W x D): 295mm x 100mm x 46mm

Weight: 537g

Accessories: Test leads, gift box with carrying case and 9V battery, USB Cable, CD Software.
