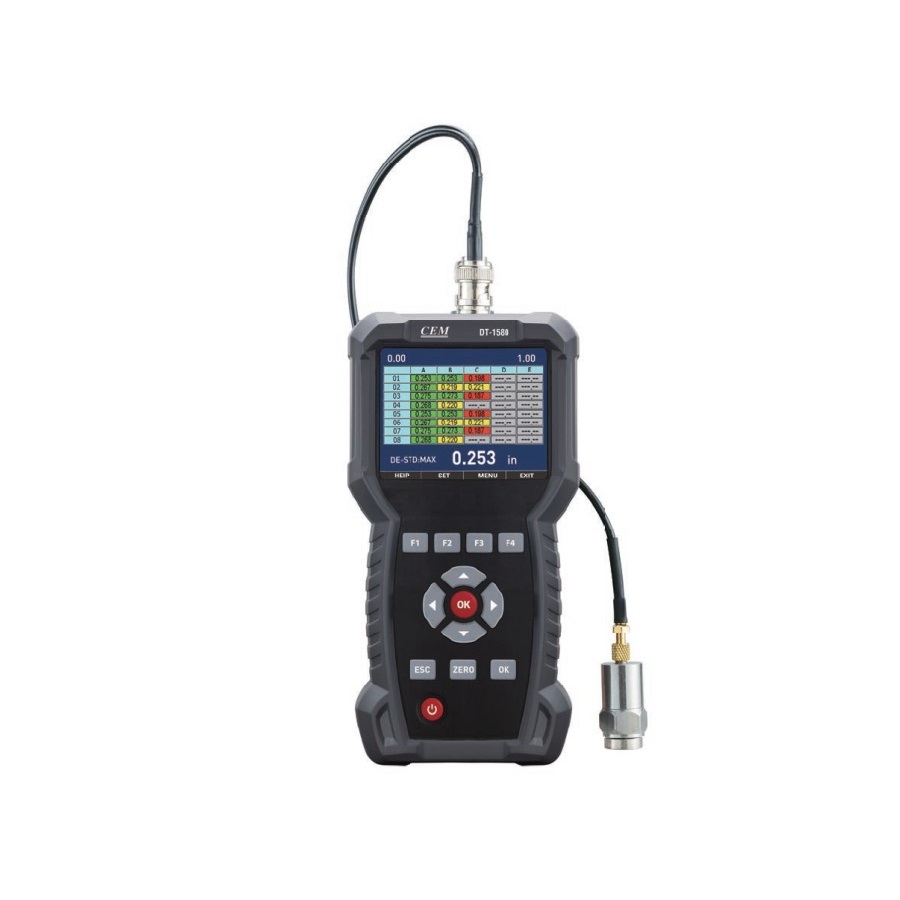

CEM DT-1580 Professional Ultrasonic Thickness Gauge (0,080 mm-635,00 mm)

Thickness range: 0.080 mm-635.00 mm (0.003 in.-25.000 in.)

Material velocity range: 0.508 mm/μs-13.998 mm/μs (0.020 in./μs-0.551 in./μs)

Resolution (selectable): Low: 0.1 mm (0.01 in.)

Standard: 0.01 mm (0.001 in.)

High Resolution (optional): 0.001 mm (0.0001 in.)

Transducer frequency range: Standard: 2.0 MHz to 30 MHz (-3 dB)

High Penetration (optional): 0.50 MHz to 30 MHz (-3 dB)

Display: 4” TFT LCD display

Power supply: AC/DC adaptor, 24 V; lithium-ion battery 23.760 Wh; or 4 AA auxiliary batteries

Size(HxWxD): 216mm x 100mm x 47mm

Weight: 706g

Accessories:

3.7V Li battery, USB cable, CD, gift box with carrying case.

Datasheet:
