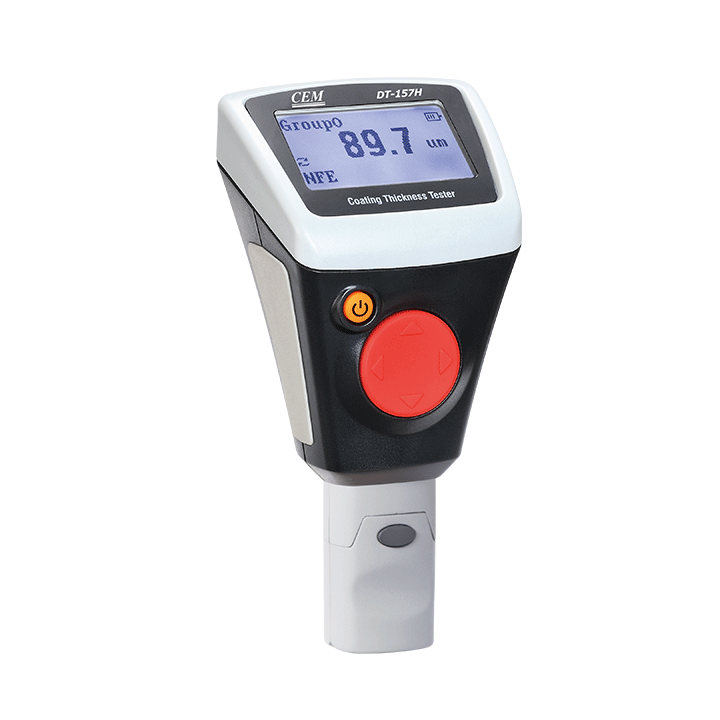

CEM DT-157H Coating Thickness Tester (0~2000um, từ tính, không từ tính)
Sensor probe: F / N
Working principle: magnetic induction / Eddy current principle
Measuring range: 0~2000um / 0~2000um
Guaranteed tolerance (of reading): (+/- 2%+2)um / (+/- 2%+2)um
Repeatability: (+/- 1%+1)um / (+/- 1%+1)um
Low range Precision: 0.1um / 0.1um
Minimum curvature radius: 1.5mm / 3mm
Diameter of Minimum area: 7mm / 5mm
Basic critical thickness: 0.5mm / 0.3mm
Size (H x W x D): 120mm x 60mm x 40mm
Weight: 120g
Accessories: Two “AAA” batteries, CD, Calibration Iron, Calibration Aluminum, Precision Standard, gift box with carrying case.
Datasheet
Features |
Non-magnetic coatings (e.g. paint, zinc) on steel |
Insulating coatings (e.g. paint) on no-ferrous metals |
No-ferrous metals coatings on insulating substrates |
Menu operation system |
Two working modes: DIRECT and GROUP mode |
Statistic Display: AVG, MAX, MIN, NO., S.DEV |
One point calibration, two points calibration and basic calibration easily |
Delete single readings and all group readings easily |
Low battery, error indication |
Memory for 2500 readings (50 GROUP readings) |
4 levels of battery indication |
Error indication |
Bluetooth interface |
Easily adapt to lighting conditions with 8 levels of backlight |
