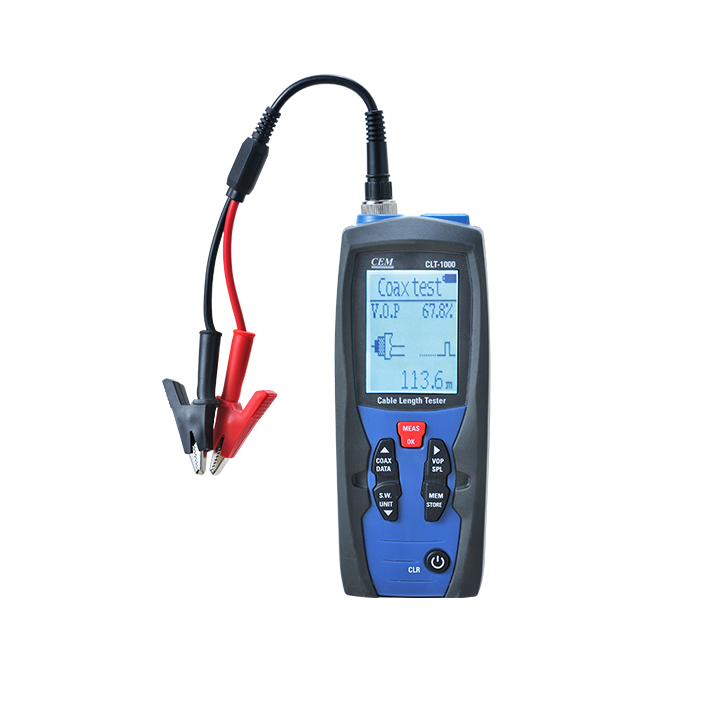

CEM CLT-1000 Cable Length Tester (3.0km at V.O.P≤99.9%)

Minimum Range: pair cable or coaxial cable>5m, Single cable>10m

Maximum Range

Depends upon the V.O.P of the cables under test

3.0km at V.O.P≤99.9%, 2.4km at V.O.P≤80.0%

2.0km at V.O.P≤66.0%, 1.5km at V.O.P≤50.0%

Range Selection: Automatic range control

Accuracy: ±(2% of reading + 10cm)<100m, ±[2% of reading +20cm]≥100m

Resolution: 0.01m<100m, 0.1m≥100m

Impedance Selection: Automatic output impedance control

Cable Library: 20 standard cable types

Memory Location: 99 for custom cable types

Connector Type: BNC, RJ45

Size(HxWxD): 152mm x 61mm x 34mm

Weight: 230g

Accessories: 2 x AA batteries, USB cable, CD, gift box with carrying case.
