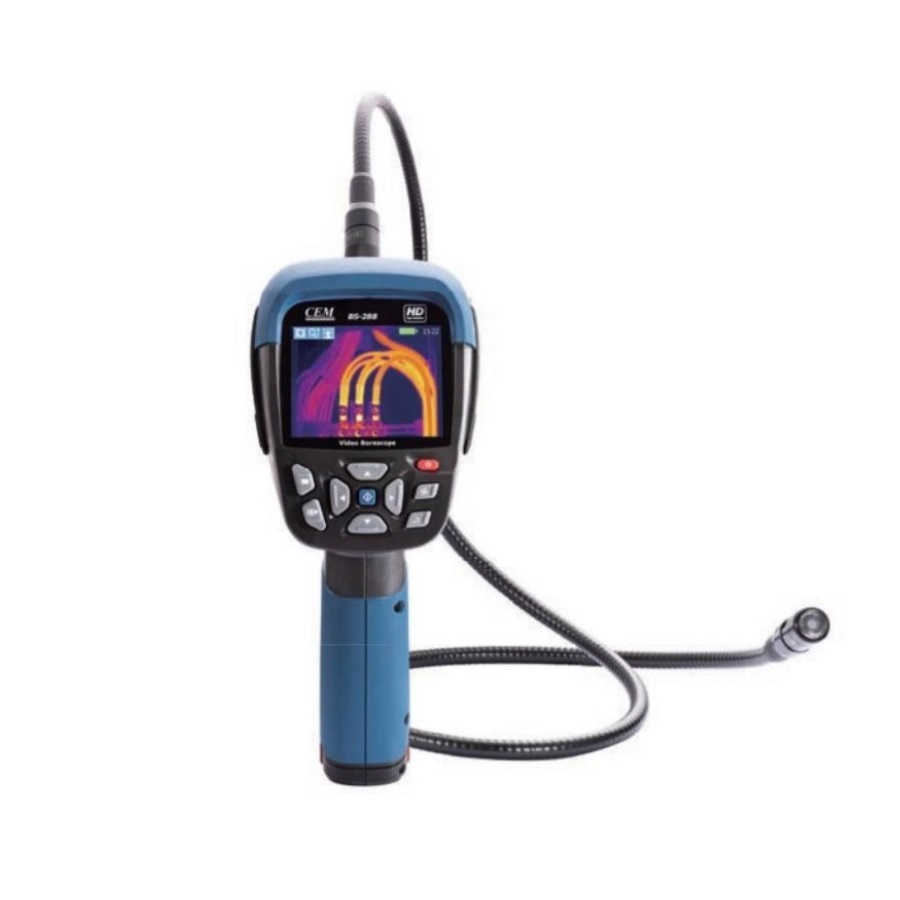

CEM BS-288 Video Borescope (120 x 90 pixels, 1m, Φ19.5mm)

LCD screen type: 3.5”TFT

LCD Pixels: 320x240

The max number of frames (FPS): 30Hz

Picture format from the camera: 120 x 90 (InfrarRed resolution)

Camera video format: 120 x 90 (InfrarRed resolution)

Thermal sensitivity: <60mk

Temperature range: -20°C~120°C

Area: 3 boxes with max./min./average

Color palettes: GRAY/IRON

Gooseneck length: 1m (39”)

Camera diameter: 19.5mm (0.7")

Viewing distance: >10cm

Viewing angle: 50°

Zoom and Rotation: 2xZoom, 90°rotation

Wi-Fi Support system: iOS, Android

SD card: 2GB/Max 32GB

Working voltage: Li Battery 3.7V/1800mA

Language Support:Support English, French, German, Spanish

Size(HxWxD): 240mm x 160mm x 100mm

Weight: 584g

Accessories:

3.7V Li battery, power adaptor, mirror, hook, magnet, gift box with carrying case.
