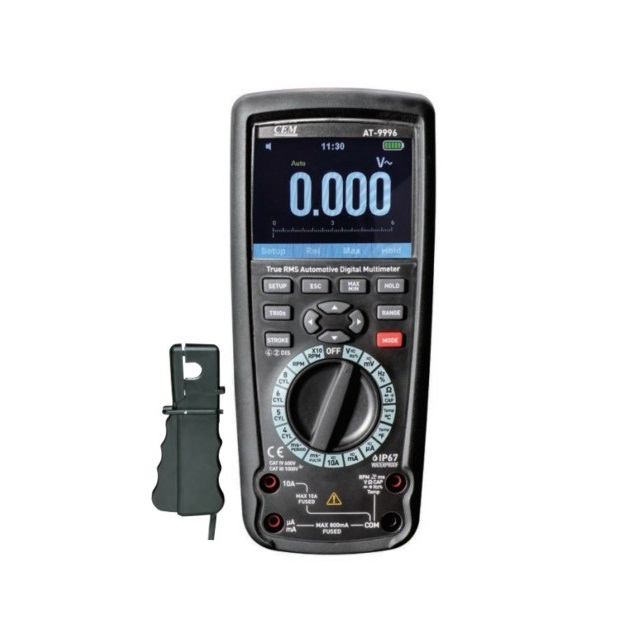

CEM AT-9996BT Professional Automotive Oscilloscope DMM (1000VDC, 10A, ± 0.9%+5d)

Voltage DC (Maximum; Max resolution; Accuracy): 1000V; 0.1mV; ±(0.9% + 5d)

Voltage AC (Maximum; Max resolution; Accuracy): 1000V; 0.1mV; ±(1.5% + 5d)

Current DC (Maximum; Max resolution; Accuracy): 10A; 0.1μA; ±(1.5% + 3d)

Current AC (Maximum; Max resolution; Accuracy): 10A; 0.1μA; ±(1.8% + 5d)

Temperature (Maximum; Max resolution; Accuracy):

-40°C-1000°C;0.1°C/1°C;±(3.0%)

-40°F-1832°F;0.1°F/1°F;±(3.0%)

Resistance (Maximum; Max resolution; Accuracy): 60MΩ; 0.1Ω; ±(1.0% + 2d)

Capacitance (Maximum; Max resolution; Accuracy): 60mF; 0.01nF; ±(4.0% + 5d)

Frequency (Maximum; Max resolution; Accuracy): 10MHz; 0.01Hz; ±(1.0% + 5d)

RPM (Tach) (Maximum; Max resolution; Accuracy):

600 ~ 4000RPM; ±(2.5%+4d)

600 ~ 12000RPM(x 10RPM); ±(2.5%+4d)

Dwell Angle (Maximum; Accuracy): 4CYL, 5CYL,6CYL, 8CYL; ±(2.5%+4d)

Duty Cycle (Maximum; Accuracy): 0.1~99.9%; ±(2.0%+5d)

Period (Maximum; Accuracy): 60mS; ±(3.0%+5d)

Pulse Width (Maximum; Accuracy): 30mS; ±(3.0%+5d)

Diode and Continuity: Yes

Bluetooth: 4.0

TFT color LCD display

Size (HxWxD): 220mm x 96mm x 60mm

Weight: 631g

Accessories:

Test leads, 6x1.5V AA batteries, Type K temperature probe, Software, gift box with carrying case.
