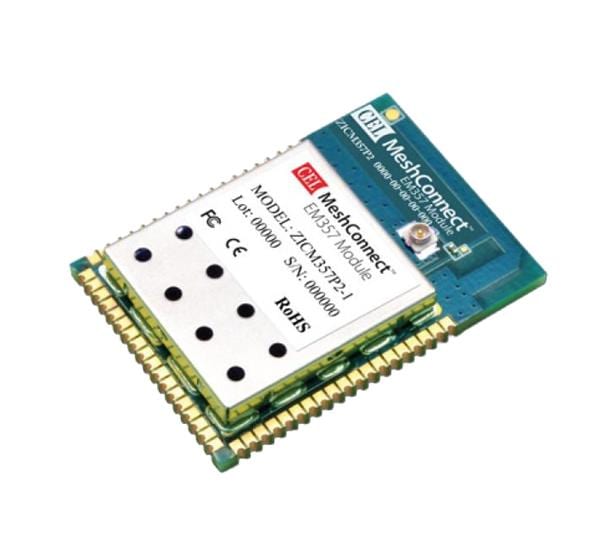

CEL ZICM357P2-1-NF-B Zigbee Modules Meshconnect Module 2405-2480MHz
ManufacturerCEL(View more products from this manufacturer)
ModelZICM357P2-1-NF-B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Range: 13000 ft
Data Rate: 250 kb/s
Frequency: 2.405 GHz to 2.48 GHz
Dimensions: 1.4 in x 1 in x 0.195 in
Sensitivity: - 100 dBm
Output Power: 20 dBm
Moisture Sensitive: Yes
Supply Voltage - Max: 3.3 V
Supply Voltage - Min: 3.3 V
Antenna Connector Type: PCB
Operating Supply Voltage: 3.3 V
Supply Current Receiving: 28 mA
Supply Current Transmitting: 170 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
