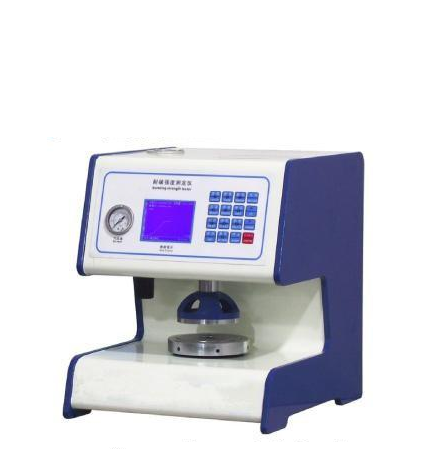

Cell Instruments BNP-01 Board Burst Strength Tester bursting force tester

Measuring Range: 150~6000kpa

Accuracy: + / - 0.5% or less(≤±0.5%)

Resolution: 0.01 kpa

Deformation Error: 1 mm or less

Plates Concentricity: 0.25 mm or less(≤0.25mm)

Diaphragm resistance : bulge height 10mm/(170～220)kPa, bulge height 18mm/(250～350)kPa

Transmit hydraulic volume: 175±5ml/min

Pressure Plate Diameter: upper:31.5±0.5mm, lower: 31.5±0.5mm

Display: 4.0 in. LCD with curve display

Clamping Force: ≥690kpa (adjustable)

Unit Conversion: Kg/cm2, kpa, LBF/in2

Dimension: 360*420*510mm

Weight: 55KG

Standard ISO2759, GB1539, GB/T6545
