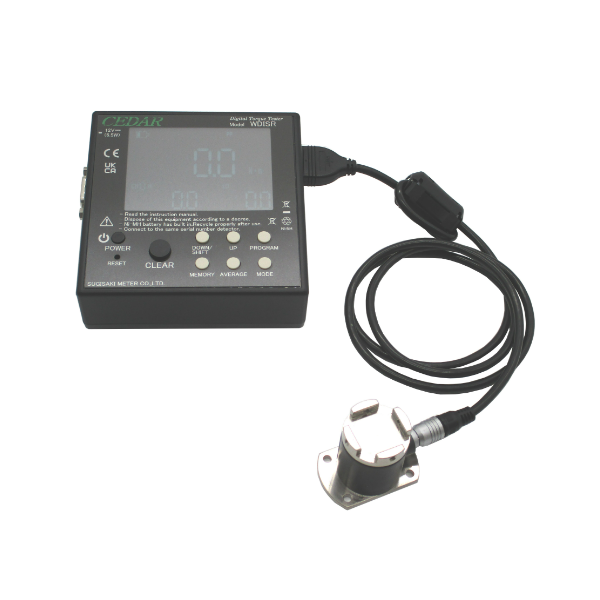

CEDAR WDISR-IPS05C Torque Tester (2.0 ~ 500.0 mNm)

Power supply: Internal battery (12 hours continuous operation time, 3 hours charging time)

Rate input voltage: 12VDC

Measurement range: 2.0 ~ 500.0 [mN-m]

Measurement Unit: kgf-cm / lbf-in / mN-m / cN-m

Accuracy: ±0.5%

Sampling rate: 1000 data / 1sec

Data output: Wired (ASCII format)

Memory size: 800 data

Auto power off: Power off after 10 minutes of non-use

Accessories, Attachments: Detector, Detector cable (Ordering number), Joint OW-025, Cube (H20×W20×D20), SC-1 with the screw hole of M1, M1.2, M1.4, M2 and M3, AC adaptor, Rubber foots

Datasheet

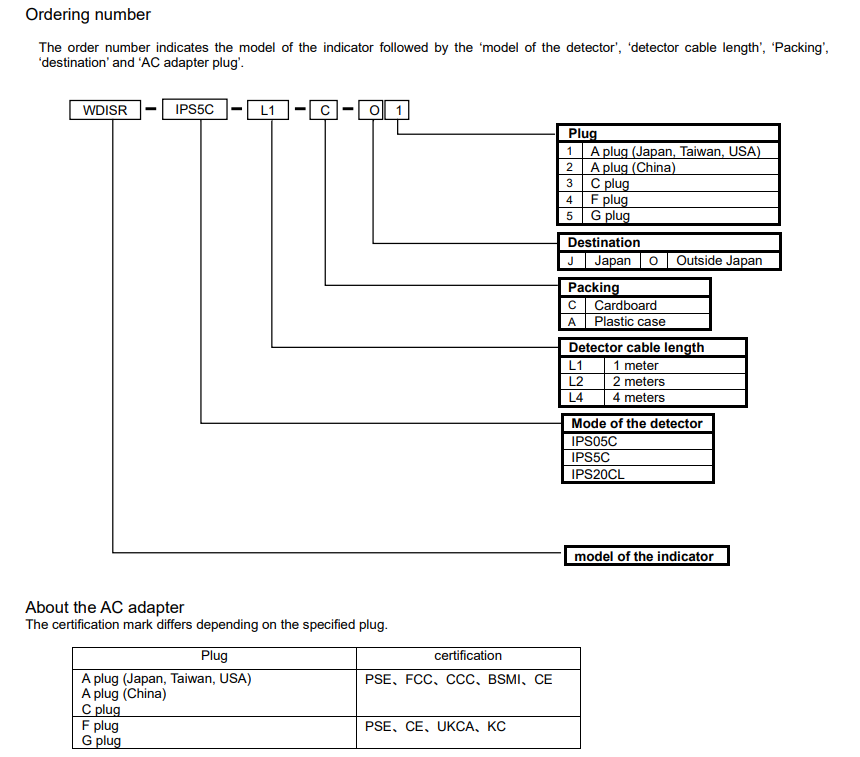

Ordering number
