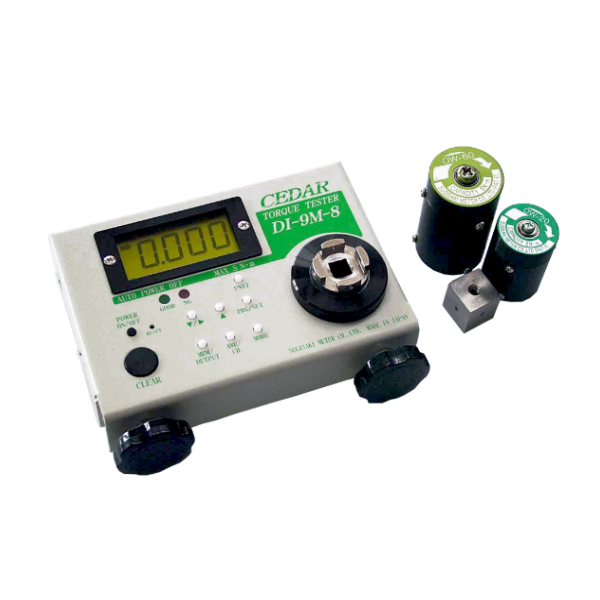

CEDAR DI-9M-8 Torque Tester (0.020-8 Nm)

Measuring Range:

0.020-8 Nm

0.20～80 kgf・cm

0.20～70 lbf・in

Accuracy: ±0.5% (499 digit or less ±3digit)

Display: The 4 figures digital display of LCD

Data Output: ASCII format (baud rate 19200)

Auto power save: 10 minutes no use, automatically switch off.

Power supply: Ni-MH chargeable battery

Charging time: About 3hours

Continuous working time: About 12hours

Socket size: 20mm/9.5mm

Dimension / Weight: W160×D125×H55mm / About 1kg

Accessories: Measuring joint OW-20/OW-60, Cube (with 5 sides screw hole) 20x20x20 (M2.6/M3/M4/M5/M6 Tap processing), AC/DC adaptor, Exclusive receipt case
