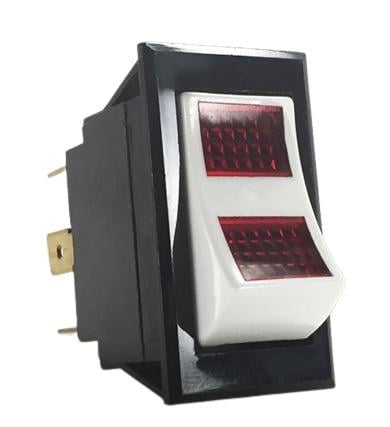

Carling Technologies TIGK54-1F-RD-A Full Sized Rocker Switches TIGK541FRDA

Life: 100000 Cycle

Width: 19.5 mm

Height: 19.35 mm

Actuator: Smooth With Flat Center

Material: Phenolic

Illuminated: Non-Illuminated

Contact Form: DP

Panel Cutout: 36.83 mm x 21.08 mm

Power Rating: 3/4 HP

Mounting Type: Bracket

Terminal Seal: Sealed

Actuator Style: Smooth With Flat Center

Current Rating: 10 A, 15 A

Mounting Style: Panel Mount

Actuator Length: 31.08 mm

Contact Plating: Silver

Panel Thickness: 0.04 in to 0.25 in

Switch Function: ON - NONE - OFF

Housing Material: Phenolic

Actuator Material: Nylon

Termination Style: Screw

Voltage Rating AC: 125 VAC, 250 VAC

Voltage Rating DC: 6 VDC to 28 VDC

Maximum Operating Temperature: + 85 C
