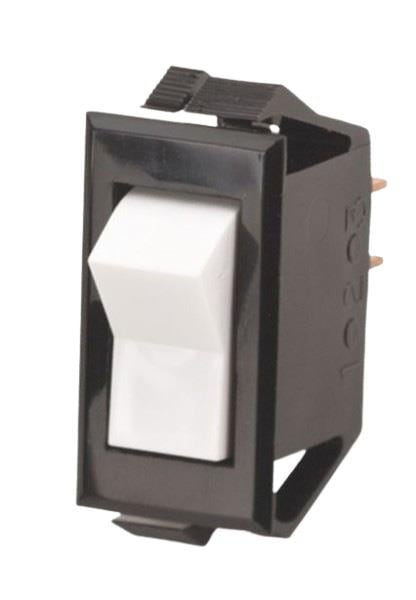

Carling Technologies TB200-TB-B Mid-Sized Rocker Switches TB200TBB

Life: 50000 Cycle

Color: Black

Height: 21.84 mm

Actuator: Rocker

Material: Nylon

Illuminated: Non-Illuminated

Contact Form: SP

Panel Cutout: 28.57 mm x 13.97 mm

Power Rating: 3/4 HP

Mounting Type: Snap In

Terminal Seal: Sealed

Actuator Style: Rocker

Current Rating: 10 A, 15 A

Mounting Style: Panel Mount

Panel Thickness: 0.508 mm to 6.35 mm

Switch Function: ON - NONE - ON

Housing Material: Nylon

Actuator Material: Nylon

Termination Style: Solder Lug

Voltage Rating AC: 125 VAC, 250 VAC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: 0 C
