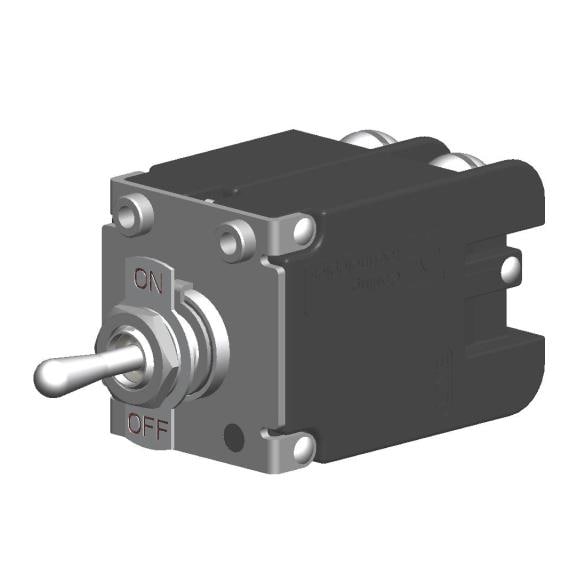

Carling Technologies MS2-B-34-615-2-1CB-A-0NC Supplementary Protector 2-pole, Sealed Toggle, 15 amp circuit breaker, Screw 8-32 with upturned lugs terminals, UL 1077 Recognized

Width: 33.02 mm

Height: 34.93 mm

Length: 54.81 mm

IP Rating: IP68

Compliance: UL; cUL Recognized

Illuminated: Non-Illuminated

Unit Weight: 100 g

Actuator Type: Toggle

Current Rating: 15 A

Mounting Style: Panel Mount

Voltage Rating: 65 VDC, 240 VAC

Number of Poles: 2 Pole

Termination Style: Screw

Voltage Rating AC: 120 VAC, 240 VAC

Voltage Rating DC: 65 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
