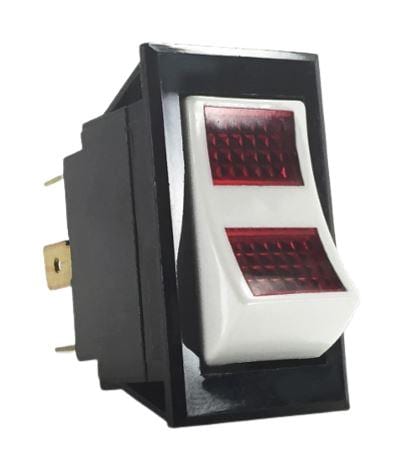

Carling Technologies LTIHK54-1C-BL-AM-C/125N Tippette Rocker Switch LTIHK541CBLAMC/125N

Life: 50000 Cycle

Color: Black

Height: 27.76 mm

Length: 39.87 mm

Actuator: Cross Serrated

Material: Phenolic

IP Rating: IP67

Lamp Type: Neon

Illuminated: Illuminated

Contact Form: DPDT

Panel Cutout: 36.83 mm x 21.08 mm

Mounting Type: Snap In

Terminal Seal: Sealed

Actuator Style: Cross Serrated

Current Rating: 10 A, 15 A

Mounting Style: Panel Mount

Actuator Length: 31.08 mm

Contact Plating: Silver

Panel Thickness: 2.54 mm

Switch Function: ON-NONE-OFF

Housing Material: Phenolic

Actuator Material: Nylon

Termination Style: Screw

Voltage Rating AC: 125 VAC, 250 VAC

Voltage Rating DC: 15 VDC to 28 VDC

Maximum Operating Temperature: + 85 C
