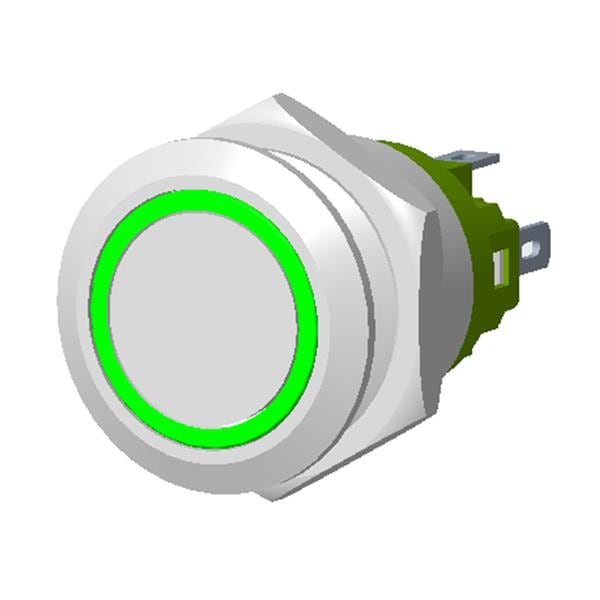

Carling Technologies AV1-1B211B-R00 Anti-Vandal 1-pole, Maintained, 10.1A Resistive 12VDC not HP rated, Illuminated Flush Pushbutton Switch with .110 Tab (Q.C.)
ModelAV1-1B211B-R00
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 25000 Cycle
Height: 25 mm
Actuator: Square
Diameter: 22 mm
IP Rating: IP67
Lamp Type: LED
Illuminated: Illuminated
Contact Form: SPST
Terminal Seal: Sealed
Actuator Style: Without Cap
Current Rating: 10.1 A
Mounting Style: Panel Mount
Actuator Length: 2.01 mm
Contact Plating: Silver
Switch Function: OFF - ON
Actuator Material: Stainless Steel
Termination Style: Quick Connect
Voltage Rating DC: 12 VDC
Illumination Color: Green
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
