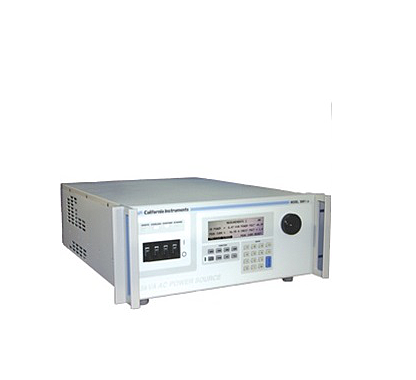

California Instruments 5001i California Instruments General Purpose Ac Source (5000Va, 300A, 110A)

AC Mode Output

Frequency Range: 16.00-1000 Hz

Total Power: 5000 VA

Load Power Factor:0 to unity at full output VA

AC Mode Voltage

Ranges: VLow: 0-150V; VHigh: 0-300 V

Output Noise (20 kHz to 1 MHz):< 250 mVrms typ.; < 500 mVrms max.

Harmonic Distortion (Linear):< 1% from 16 - 66 Hz, < 2% at 400 Hz, < 3% at 800 Hz (Full resistive load)

DC Offset:< 20 mV External Amplitude Modulation: Depth: 0 - 10 %, Frequency: DC - 2 KHz

Isolation Voltage:300 Vrms output to chassis

AC Mode Current

Steady State AC Current: 300 V range: 18.5; 150 V range:37

Peak Repetitive AC Current: High range: 96.0; Low range: 110.0

DC Mode Output

Power (Max at full scale of DC Voltage Range): 3500 W

Voltage Ranges:Range: Low: 200 Vdc, High: 400 Vdc

Line Regulation:< 0.1% FS or 10% line change

Output Noise:< 250 mV rms typ., < 500 mV rms max., (20 kHz to 1 MHz)

Max DC Current (Maximum current at 65% of V Range)

400V range:13

200V range:26

AC+DC Mode Output

Please check the datasheet for details
