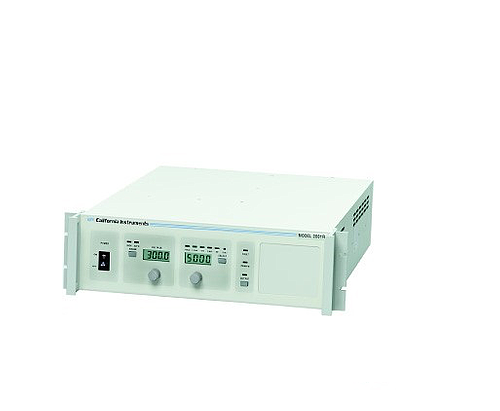

California Instruments 2001RP Nguồn Ac California Instruments (2000Va)

Output

Phases: 1

AC Power: 2000VA

Load Connection Floating neutral (option): Rear panel terminal block /optional Universal front panel sockets

RP Series : Product Specifications

Output : Voltage

High range / Low Range: 0-300 / 0-150 V RMS (except -AV and -LZ options)

Accuracy: ± 0.1 %FS @ 16Hz-100 Hz

Accuracy: ± 0.2%FS @ 100Hz-5000Hz

Resolution: 0.1 V

Load Regulation remote sense: ± 0.1% FS

Line Regulation 10 % Line change: ± 0.02%FS

T.H.D: 16-100Hz 0.5 typ./1.0 max.% (into a resistive load)

Output Noise: < 0.1 V RMS typ.

Output : Frequency (specifications valid from 45 Hz to 500 Hz)

Range: 16 - 5000Hz

Accuracy: ± 0.02%

Resolution

16.0Hz-80.0Hz 0.01 Hz

80.1Hz-800.0Hz 0.1 Hz

800Hz-5000Hz 1Hz

Output : Current

Steady State Current High V range: 6.7 A rms

Steady State Current Low V range: 13.4 A rms

Peak Current High V range: 22.2 A peak

Peak Current Low V range: 44.5 A peak

Input

Line Voltage 2 wire + GND: 107/115V or 208/230V ± 10% V RMS (set by jumper)

Line Current (fused): <35@96V, <30@115V,<15@230V A RMS

Line Frequency: 47 - 440 Hz

Holdup Time: 10 ms

Power Factor: 0.7

Isolation Input/output to Chassis: 1350 V / 2200 V

Please check the datasheet for details
