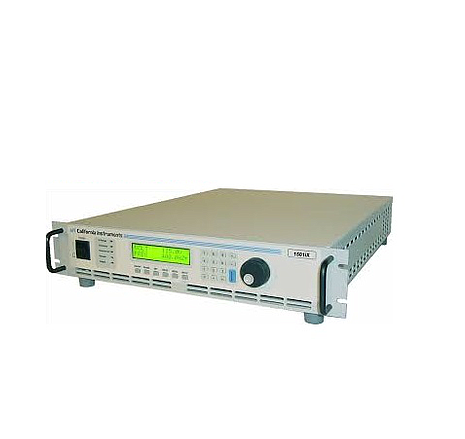

California Instruments 1501i California Instruments Precision Programmable Ac Source (1500W, 300V, 40A)

Voltage: 115Vrms +/- 10% or 230Vrms +/- 10%

Current:

<17 Arms @ 115 V

<8.8 Arms @ 230 V

Frequency: 47 to 63 Hz

Power Factor: 0.97 (typical @ full load)

Efficiency: 80%

AC Output

Voltage: Hi : 0 - 300Vrms; Low : 0 - 150Vrms

Max. Current: Hi : 6.5 Arms; Low :13 Arms

Peak Current Hi : 20 A Peak ; Low : 40 A Peak

AC Power: 750VA

Phase Output: 1

Distortion: < 1% THD

DC Output

Voltage : Hi : 0 - 400Vdc; Low : 0 - 200Vdc

Max. Current : Hi : 3.25 Adc ; Low : 6.50 Adc

DC Power: 1000W

Voltage Accuracy/Programming Resolution (AC/DC)

Accuracy (ALC mode ON): 0.1% FS (from 5V to FS)

Programming Resolution: 0.1V

Frequency

Range: 16 – 1000Hz

Resolution:

0.01 Hz (16 – 81.91 Hz)

0.1 Hz (82.0 – 819.1 Hz)

1 Hz (820– 1000 Hz)

Accuracy: 0.025%

Interfaces

USB: Standard

GPIB: Option

Please check the datasheet for details
