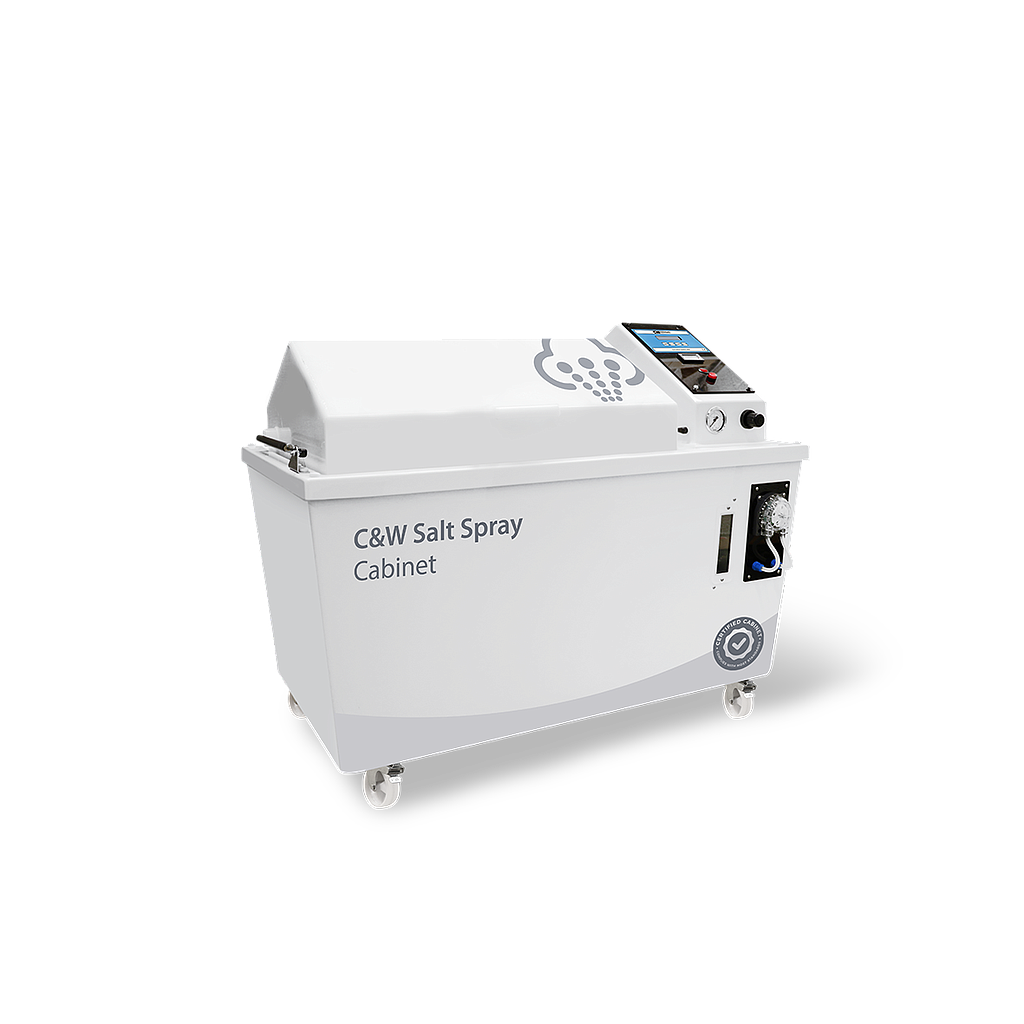

C&W CW1020 Salt Spray Cabinet (2000L, automatic)

External dimension

L: 2760 mm

W: 1360 mm

H: 1650 mm

Internal dimension

I: 2000 mm

W: 1000 mm

H1: 850 mm

H2: 1175 mm

Panel capacity: 516

Power Supply Amp: 3 phase 380V 50/60Hz

Style: Floormounted

Compressed air:6 ~ 8 bar (90 ~ 120 psi)

Power supply: Other voltage on request.

Water type: De-ionzed or mains water below 50 mg/litre TDS

Water pressure: 2 - 4 bar (30 to 60 psi)

Water connection: 10mm ID plastic pipe

Drain: 36 mm outside diameter plastic pipe liquid waste

Reservoir with Lid: Supplied on castor with internal solution filter

500mm x 620 mmm x 540 mmm (LxWxH)

Scope of supply

1 x CW4088 Installation kit

1 x CW4052 Annual kit

1 x CW4035 Set of Collection Vessel (2 funnel, 2 cylinder)

1 x 5kg Salt + Certificate

1 x CW5882 Adapter for pipe

1 x VF7101 Corrosion Handbook
