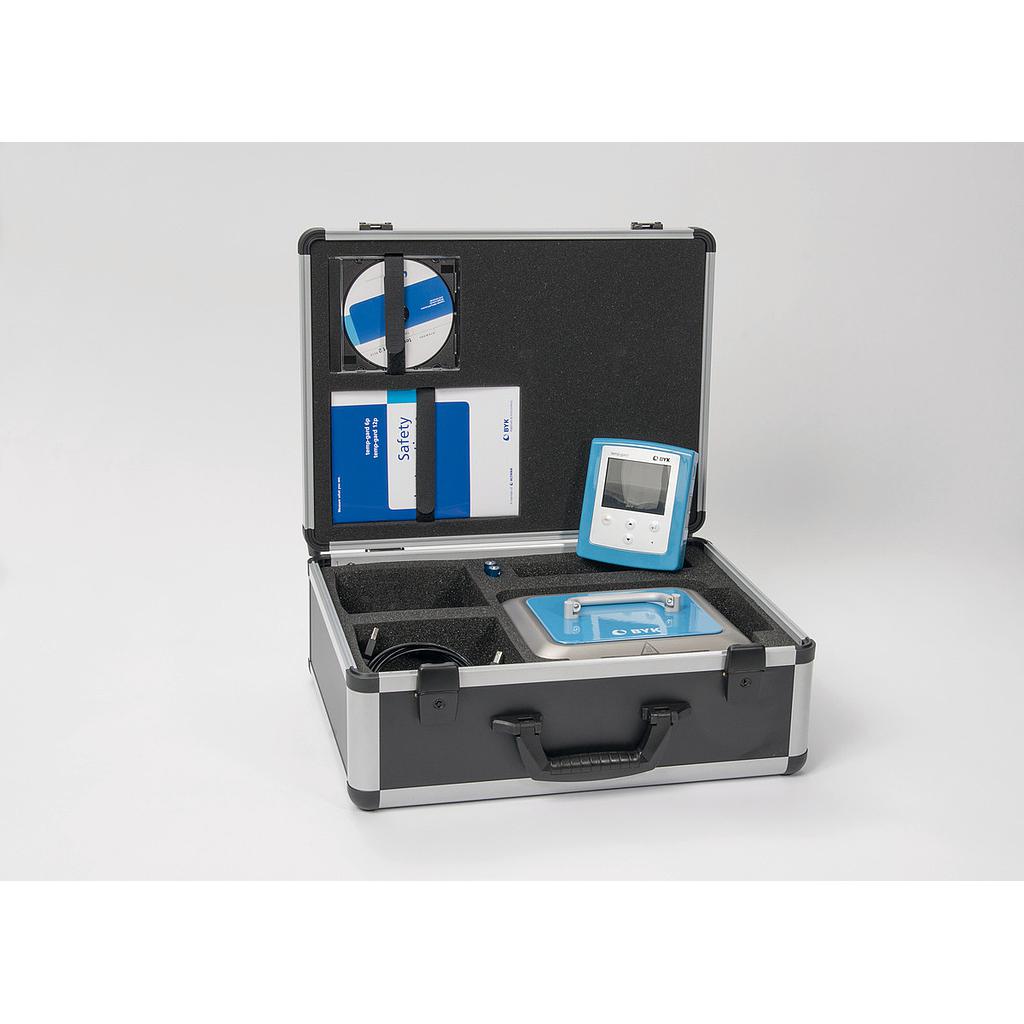

BYK temp-gard pro 6p Oven recorder - 6 measure points for QC & Optimization (0-400°C, ± 0,5°C; No Probes)

Technical Specifications

Probe Type: no probe

Temperature Range: 0 - 400 °C

Temperature Range: 32 - 752 °F

Accuracy: ± 0.5 °C

Probes: 6 clamp probes = one air probe, No probes*

Resolution: 0.1 °C (0.18 °F) from 0 - 400°C (32 - 752 °F)

No. of Channels: 6

Sampling Interval: 0.1 sec up to 5 min

Thermal Barrier Dimensions: 25.5 x 21.5 x 13.5 cm (10.0 x 8.5 x 5.3 in)

Maximum Duration: at 100 °C, 8.5 hrs; at 200 °C, 2.5 hrs; at 250 °C, 2.0 hrs

General

Memory: 240,000 readings

Interface: USB 2.0

Display: Color, 7.9 x 6 cm (3.1 x 2.4 in)

Battery Capacity: 0.5 sec interval = 25 hrs (AA Alkaline)

Weight: 3.6 kg/ 7.8 lb

Features

Small Logger, Big Display

Small, modern data logger

Large color screen for mea­su­rement setup direct on logger

6 or 12 high-quality type "K" probes can be connected

Detection of connected probes

Temperature profile on display

USB interface provides easy data transfer for on-site evaluation

Long battery life with 2 AA Alkaline batteries

Certified high accuracy for long-term reliable results

Manual
