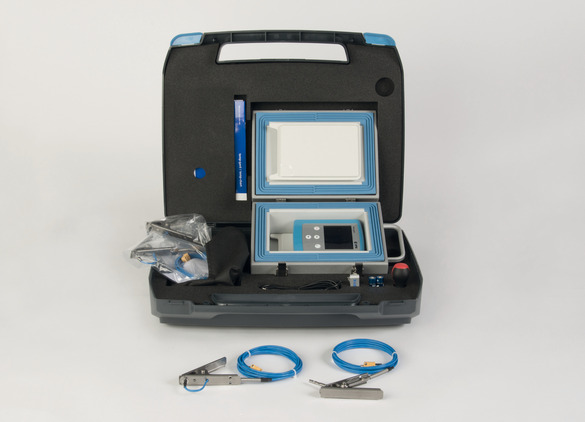

BYK temp-gard basic C Oven recorder with 6 clamp thermocouples for QC (0 - 400°C, ± 0,5°C)

Technical Specifications

Probe Type: clamp

Temperature Range: 0 - 400 °C/ 32 - 752 °F

Accuracy: ± 0.5 °C

Probes: 6 clamp probes = one air probe, 5 object probes

Resolution: 0.1 °C (0.18 °F) from 0 - 400°C (32 - 752 °F)

No. of Channels: 6

Sampling Interval: 0.1 sec up to 5 min

Thermal Barrier Dimensions: 27 x 21,5 x 14 cm (10,6 x 8,5 x 5,5 in)

Maximum Duration: at 100 °C, 8.5 hrs; at 200 °C, 2.5 hrs; at 250 °C, 2.0 hrs

General

Memory: 240,000 readings

Interface: USB 2.0

Display: Color, 7.9 x 6 cm (3.1 x 2.4 in)

Battery Capacity: 0.5 sec interval = 25 hrs (AA Alkaline)

Weight: 4.3 kg/ 9.5 lb
