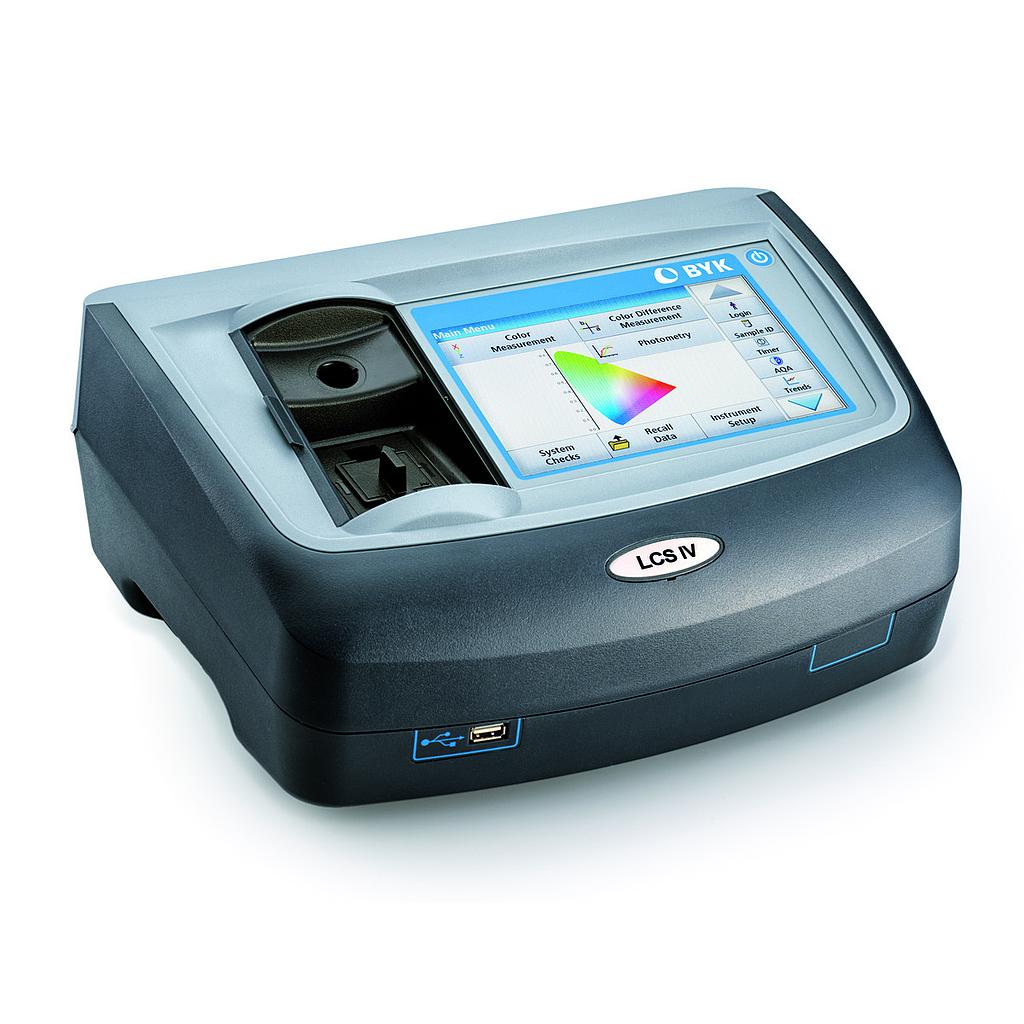

BYK LCS IV Objective color QC of transparent liquids

Technical Specifications

Data Output: Spectral Data and Liquid Color Indices

Color Measurement

Type: Single-beam photometer with reference beam path

Spectral Range Colorimetric: 380-720nm, 10nm resolution

Spectral Range (Photometric): 320-1100nm, 1nm resolution

Color Scales: CIELab; CIELCh; Hunter Lab

Color Indices: Gardner; Hazen/APHA; Iodine; Saybolt; Lovibond; Hess-Ives; European, US and Chinese Pharmacopoeia; Mineral oil; Yellowness; Acid Wash Test; Chlorophyll A; ADMI

Illuminants: A, C, D65

Observer: 2°, 10°

Spectral: % transmission; % absorbance, concentration

Light Source: Tungsten Halogen Lamp

General

Memory: 3000 color measurements, 100 color references, 1000 photometric readings

Interface: 2x USB-A; 2x USB-B; 1x Ethernet (LAN)

Export: *.csv file to USB memory stick or Ethernet

Power supply: 100 - 240 V / 47 - 63 Hz

Weight: 4.2 kg

Weight: 9.3 lb

Operating temperature: 10 - 40 °C

Operating temperature: 50 - 104 °F

Relative humidity: up to 80%, 35°C (95°F), non condensing

Dimensions (L x W x H): 25.5 x 35 x 15.1 cm

Dimensions (L x W x H): 10 x 13.7 x 5.9 in
