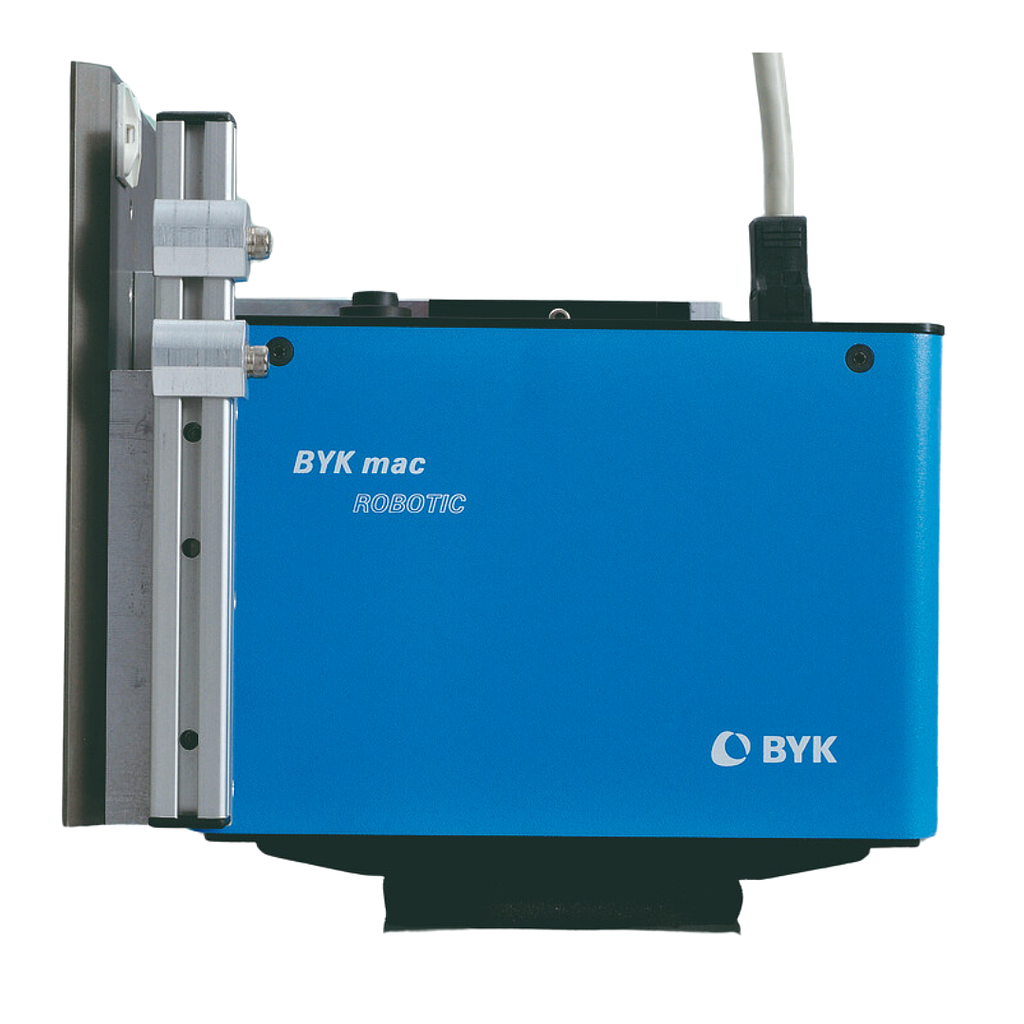

BYK BYK-mac i Robotic Multi-angle color & effect measurement for automation

Color Measurement

Color Geometry: 45° illumination; -15°, 15°, 25°, 45°, 75°, 110° aspecular viewing

Measuring Area: 87 x 23 mm (3.4 x 0.9 in)

Spectral Range Colorimetric: 400 - 700 nm, 10 nm resolution

Measurement Range: 0 to 600 % reflectance

Repeatability Color: 0.01 ΔE* (10 consecutive measurements on white)

Reproducibility Color: Grey BCRA II tiles: avg. ΔE* < 0.10 Chromatic BCRA II tiles: avg. ΔE* < 0.25

Color Scales: ΔE*; ΔE CMC; ΔE 94; ΔE 2000; ΔE 99; ΔE DIN6175 and customer specific scales

Color Indices: Flop, Int-Em

Illuminants: A; C; D50; D65; F2; F7; F11; F12; CIE 015:2018 LED illuminants

Observer: 2°; 10°

Effect Measurement:

Effect Geometry: 15°, 45°, 75° and diffused illumination; perpendicular viewing with camera

Effect Parameters: ΔS; ΔS_a; ΔS_i; ΔG

Repeatability Effect: S_a / S_i: 5% or > 0.50 / G = ± 0.05

Reproducibility Effect: S_a / S_i: 10% or > 1.00 / G = ± 0.15

Object Curvature: Radius > 40 cm

Robotic requirements: Vibration-free operation

General:

Measuring time: < 6 seconds

Memory: 1000 standards / samples

Interface: RS 422

Power supply: External power supply 24 VDC

Weight: 3.5 kg

Weight: 7.7 lb

Operating temperature: 10 - 42 °C

Operating temperature: 50 - 110 °F

Relative humidity: up to 85%, 35° C (95° F); non-condensing

Dimensions(L x W x H): 21 x 12.5 x 17.5 cm

Dimensions(L x W x H): 8.3 x 5 x 6.9 in
