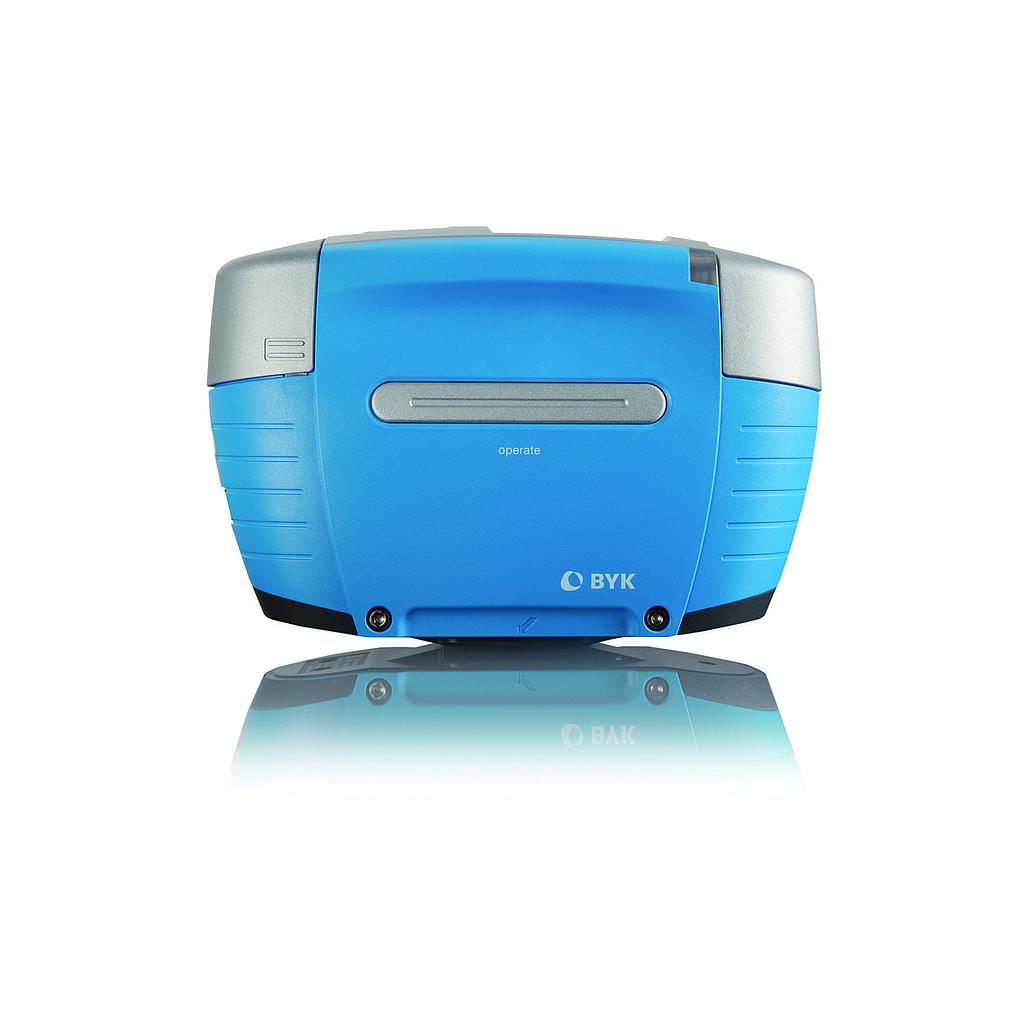

BYK BYK-mac i 23 mm Multi-angle color & effect measurement (23mm diameter, with software)

Color Measurement:

Color Geometry: 45° illumination; -15°, 15°, 25°, 45°, 75°, 110° aspecular viewing

Measuring Area : 23 mm diameter

Spectral Range Colorimetric : 400 - 700 nm, 10 nm resolution

Measurement Range : 0 to 600 % reflectance

Repeatability Color : 0.01 ΔE* (10 consecutive measurements on white)

Reproducibility Color : Grey BCRA II tiles: avg. ΔE* < 0.10 Chromatic BCRA II tiles: avg. ΔE* < 0.25

Color Scales : ΔE*; ΔE CMC; ΔE 94; ΔE 2000; ΔE 99; ΔE DIN6175-2019 and customer specific scales

Color Indices : Flop, Int-Em

Illuminants : A; C; D50; D65; F2; F7; F11; F12; CIE 015:2018 LED illuminants

Observer : 2°; 10°

Effect Measurement:

Effect Geometry : 15°, 45°, 75° and diffused illumination; perpendicular viewing with camera

Effect Parameters : ΔS; ΔS_a; ΔS_i; ΔG

Repeatability Effect : S_a / S_i: 5% or > 0.50 / G = ± 0.05

Reproducibility Effect: S_a / S_i: 10% or > 1.00 / G = ± 0.15

General:

Measuring time: < 6 seconds

Software: with software

Memory: 1000 standards / samples

Display: 2.7 in. TFT color LCD display

Languages: English, French, German, Italian, Japanese, Spanish, Chinese, Russian

Power supply: Rechargeable battery pack or 4 mignon AA batteries (alkaline or rechargeable)

Weight: 1.3 kg

Operating temperature: 10 - 42 °C

Relative humidity: up to 85%, 35° C (95° F); non-condensing

Dimensions (L x W x H): 21.8 x 8.1 x 14.7 cm
