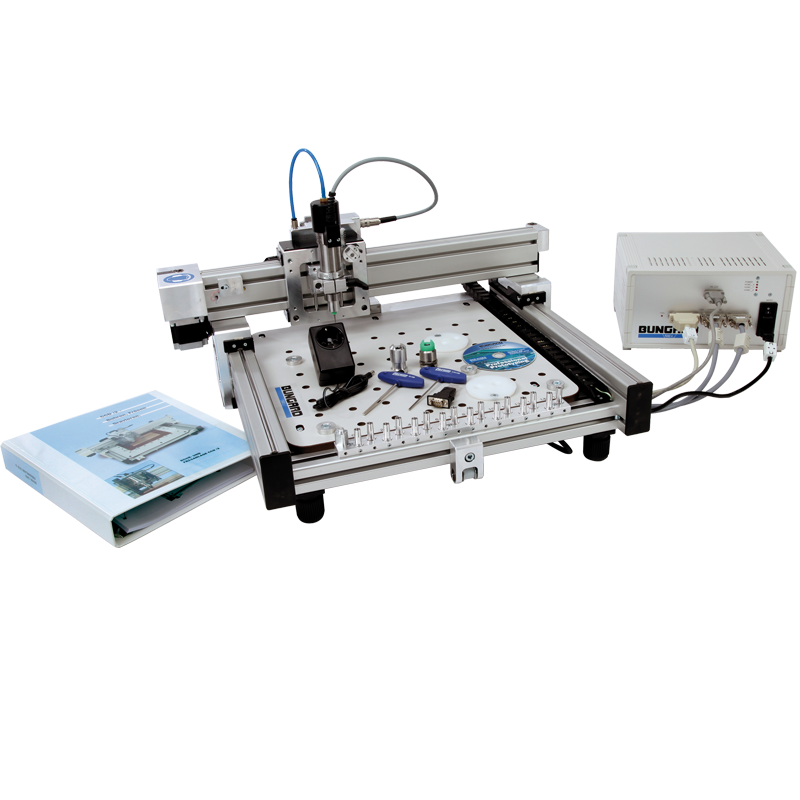

Bungard Elektronik CCD/2/ATC CNC Machine (30,000 – 63,000 rpm)

Power supply: 110–240 V, 50–60 Hz + vacuum cleaner (1500W)

Spindle speed: 30,000 – 63,000 rpm

Travel speed: 1 – 9000 mm/min

Software resolution: 0.0001 mm (0.1 µm)

Mechanical resolution: step resolution selectable in software: 1 mil, ½ mil, ¼ mil (= 6.35 µm)

Tool diameter: 0.1 mm – 3.175 mm (recommended; larger tool diameters supported)

Positioning accuracy: 20 ppm (0.002%) over the entire workspace

Max. positioning speed per axis: 9000 mm/min (= 150 mm/s)

Max. working speed per axis: 9000 mm/min (= 150 mm/s), individually adjustable per tool, independent of positioning speed

Drilling speed: 5 holes/s (= 18,000 holes/h = 300 holes/min)

Requirements: Computer; PCB fixation: clamps, marking pins, etc.

Options: vacuum table, CCD/2/ATC

Weight: 30 kg

Dimensions (mm): 700 × 550 × 300

Working area (mm): 270 × 325 × 38

Tool changer capacity: 16
