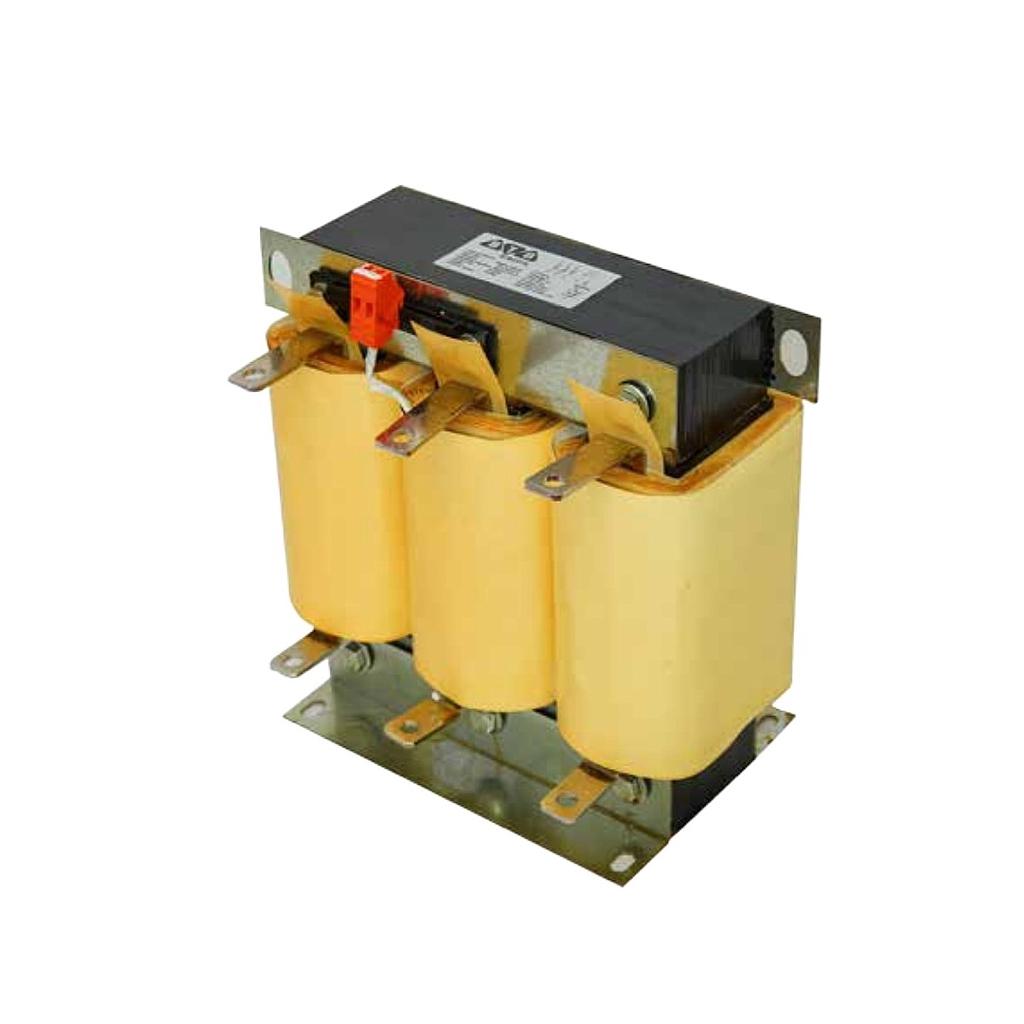

BTB ELECTRIC BRH3-7/400/40 Reactor (40kVAr)

Capacitor Power (kVAr): 40

Capacitor Voltage (V): 440

LC Power at 400V (kVAr): 40

Reactor Inductance (mH): 0.96

Dimension (LxWxH) (mm): 295x145x260

Dimension (XxY) (mm): 200x75

Fixing Holes: 8x15mm

Weight (kg): 24.5

Frequency: 50 Hz

Design: Three phase, iron core with multi air gap

Resonance Frequency: 6% - 204Hz / 7% - 189 Hz / 14% - 134Hz

Impedance Ratio: P = 7%

Coil Winding Material: Copper

Maximum Current Including Harmonics Overload: 1.5 Times the Capacitor current

Approximate Losses: 15-20W / kVAr (Qc)

Tolerance of Inductance: +/- 3% at Effective Current (Ieff)

Linearity of Inductance: 1.75 x Ic

Ventilation / IP Class: Air-Cooled / IP 00 (Indoor)

Maximum Reactor Operating Temperature: 135°C at ambient temperature 45°C

Thermal Ovevrload Protection: Built-in thermostat cut off at 135°C

Insulation Class: Class F (155°C)

Max altitude: 2000 m

Max relative humidity: 95%

Statistical life expectancy: >200 000 hours

Insulation Strength Testing Voltage: 3kV

Noise Level: <55db

Compliance Standards: IEC60076-6
