Brooks Instrument GRD Pressure Transducers (±0.25%F.S)

Body Type: Dead End

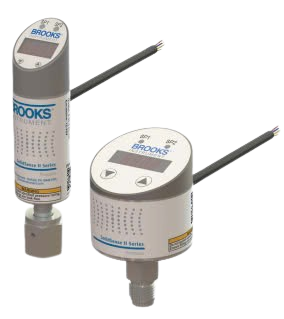

Pressure Transducer with Rotatable Display and Relays

Performance

Operating Temperature: -4°F to 140°F (-20°C to 60°C)

Storage Temperature: -40°F to 185°F (-40°C to 85°C)

Compensated Temperature: -4°F to 140°F (-20°C to 60°C)

Burst Pressure: 300% F.S. up to 5000 psi

Proof Pressure: 200% F.S. up to 5000 psi

Thermal Error - Zero or Span Ref 68°F: ±0.02% F.S./°F

Accuracy: ±0.25% F.S. (BFSL)

Response Time: 5 msec max.

Mechanical

Housing: Stainless Steel

Display Housing: Glass-filled Nylon 6

Display Faceplate: Polycarbonate

Wetted Parts: 316L stainless steel, SEMI F20 fitting and hastelloy C-276 sensor

Wetted Surface Finish: Compliant with SEMI F19 (316L)

Wetted Internal Volume: 0.1 cubic inch for GPD and GRD, 0.15 cubic inch for GRF

Approximate Weight: Varies with fitting 5-9.5 oz + cable 0.4 oz/ft

Gauge Reference Pressure Vent: Via cable and connectors

For more details, see datasheet.
