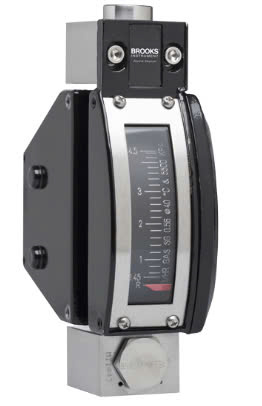

Brooks Instrument 3750C Metal Tube Variable Area Flow Meters (5%, 3%)

Rangeability: 10:1 (most sizes)

Metering Tube: 316L (stainless steel) Monel K-500

End Fittings: 316L (stainless steel) Monel K-500

Accuracy: 5%, 3%, VDI/VDE class 4, 2.5

Repeatability: 1% Full Scale

Scale: Silver increments with black background - Aluminum Material (52 mm long), single or dual

 Floats: 316L stainless steel Titanium Gr. II

O-Rings: Viton® fluoroelastomers PTFE Teflon®, Buna-N, Kalrez® 4079 perfluoroelastomers, Ethylene Propylene

Protection Category: (Indicator only) IP66/67/NEMA 4X, (Alarms) IP65/NEMA 4X, (Transmitter) IP66/67/NEMA 4X

Indicator Housing & Cover: Die cast Aluminum (Alloy 380), epoxy paint, glass window

Maximum Fluid Temperature: 204°C/400°F

Maximum Fluid Pressure: 1500 PSIG (100 Bar), 4000 PSIG (276 Bar) (No valve, 1/4” NPT only)

Pressure Equipment Directive (PED) 2014/68/EU: Flowmeter complies under Sound Engineering Practices (SEP)

RoHS: Products conform to the European Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

Inductive Alarm Switches: 1 or 2 inductive switches

Reed Switches: 1 or 2 switches

Transmitter: 4-20 mA output

For more details, see datasheet.
