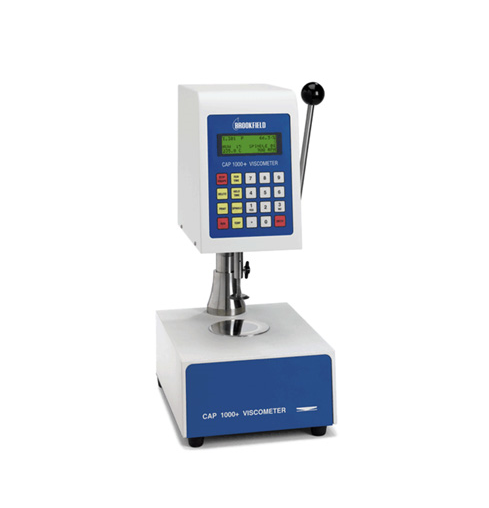

Brookfield CAP1000+ Viscometer
Number of Increments:2
Display:4–Line
Small sample size: less than 1 mL
Cone & Plane cutting speed: 10.00 sec
Temperature control of sample: L Series: 5°C — 75°C/ H Series: 50°C — 235°C
Speed: 750 or 900 rpm
Accessories: CAP Viscosity Standards; Additional Cone Spindle
Include: Instrument; Choice of Torque Range: High Torque (ICI Specification): 181,000 dyne • cm, Low Torque: 7,970 dyne • cm; Choice of One Cone Spindle; Choice of Temperature Control: L or H.
CAP CONE (SELECT ONE SPINDLE CAP IN DETAIL PART)
| Con quay | Thang cắt (giây) | Thể tích mẫu (ml) | Góc Cone (độ) | Cone radius (cm) | Độ nhớt 5 rpm | Độ nhớt 750 rpm | Độ nhớt 900 rpm |
| CAP-01 | 13.3 N | 67ul | 0.45 | 1.511 | 37.5-375 | 0.25-2.5 | 0.2-2.0 |
| CAP-02 | 13.3 N | 38 | 0.45 | 1.200 | 75-750 | 0.5-5 | 0.4-40 |
| CAP-03 | 13.3N | 24 | 0.45 | 0.953 | 150-1500 | 1-10 | 0.8-80 |
| CAP-04 | 3.3 N | 134 | 1.8 | 1.200 | 300-3000 | 2-20 | 1-16 |
| CAP-05 | 3.3 N | 67 | 1.8 | 0.953 | 600-6000 | 4-40 | 3-33 |
| CAP-06 | 3.3 N | 30 | 1.8 | 0.702 | 1.500-15.000 | 10-100 | 8-83 |
| CAP-07 | 2.0 N | 1700 | 3.0 | 2.399 | 62.5-625 | 0.42-4.2 | 0.35-3.47 |
| CAP-08 | 2.0 N | 400 | 3.0 | 1.511 | 250-2500 | 1.67-16.7 | 1.39-13.9 |
| CAP-09 | 2.0 N | 100 | 3.0 | 0.953 | 1.000-10.000 | 6.67-66.7 | 5.5-56 |
| CAP-10 | 5.0 N | 170 | 1.2 | 1.511 | 100-1000 | 0.67-6.67 | 0.56-5.56 |
Brochure
Operating Manual
