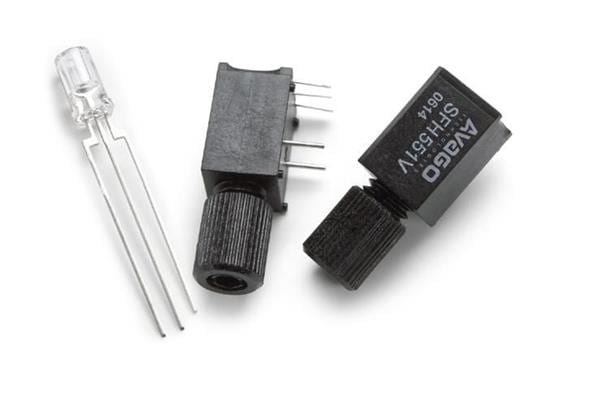

Broadcom SP000063802 Transmitters SFH 756

Width: 5.5 mm

Height: 9 mm

Length: 5.5 mm

Data Rate: 10 MBd

Fall Time: 100 ns

Rise Time: 100 ns

Fiber Type: Plastic Optical Fiber (POF)

Wavelength: 650 nm

Application: Industrial

Unit Weight: 415.150 mg

Connector Type: No Connector

Mounting Style: Through Hole

Emitting Source: LED

Peak Wavelength: 660 nm

If - Forward Current: 50 mA

Transmission Distance: 20 m

Pd - Power Dissipation: 120 mW

Operating Supply Voltage: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
