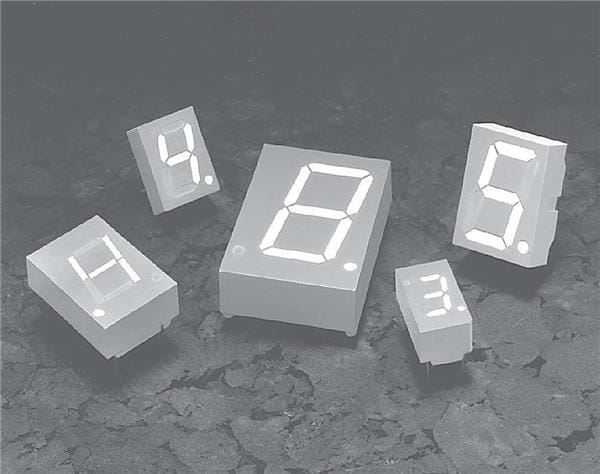

Broadcom HDSP-7517 Low Current Red 626nm 0.3in 7 Segment
ManufacturerBroadcom(View more products from this manufacturer)
ModelHDSP-7517
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Wavelength: 645 nm
Touch Panel: Without Touch Panel
Display Type: 7 Segment
Configuration: Common Anode
Character Size: 4.19 mm x 7.62 mm
Mounting Style: Through Hole
Number of Digits: 1 Digit
Illumination Color: Red
Luminous Intensity: 270 ucd
If - Forward Current: 20 mA
Vf - Forward Voltage: 1.7 V
Module Size - W x H x T: 7.62 mm x 12.7 mm x 6.09 mm
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 20 C
