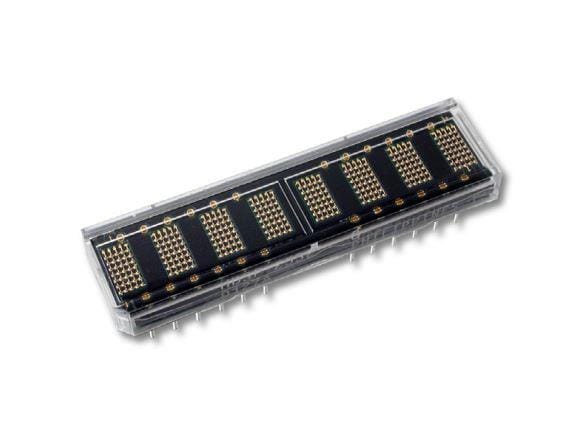

Broadcom HDSP-2534 LED Displays Red 637nm 5x7 Smart Display

Wavelength: 637 nm

Touch Panel: Without Touch Panel

Unit Weight: 4.536 g

Display Type: 5 x 7 Dot Matrix

Character Size: 2.54 mm x 4.57 mm

Mounting Style: Through Hole

Number of Digits: 8 Digit

Illumination Color: Red

Luminous Intensity: 25 mcd

If - Forward Current: 410 mA

Vf - Forward Voltage: 5 V

Viewing Area - W x H: 40.06 mm x 4.57 mm

Module Size - W x H x T: 42.93 mm x 11.43 mm x 5.31 mm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
