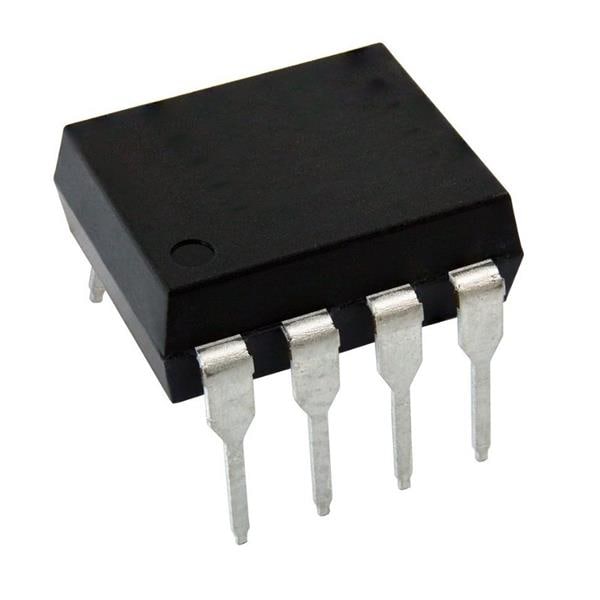

Broadcom HCPL-261N#060 High Speed Optocouplers 10MBd 1Ch 3mA

Width: 6.35 mm

Height: 3.56 mm

Length: 9.65 mm

Data Rate: 10 Mb/s

Fall Time: 12 ns

Rise Time: 42 ns

Output Type: Open Collector

Output Current: 50 mA

Isolation Voltage: 3750 Vrms

Number of Channels: 1 Channel

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.5 V

Vr - Reverse Voltage: 3 V

Pd - Power Dissipation: 60 mW

Maximum Collector Current: 50 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
