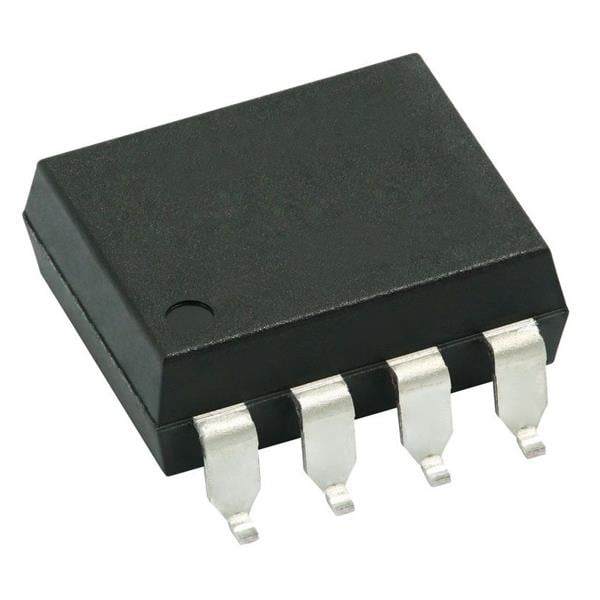

Broadcom HCNR201#550 High Linearity Optocouplers 1 Ch 60mW 25mA
ManufacturerBroadcom(View more products from this manufacturer)
ModelHCNR201#550
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 9 mm
Height: 4 mm
Length: 11.15 mm
Output Type: Photodiode
Mounting Style: SMD/SMT
Isolation Voltage: 1414 Vrms
Number of Channels: 1 Channel
If - Forward Current: 20 mA
Vf - Forward Voltage: 1.6 V
Vr - Reverse Voltage: 2.5 V
Current Transfer Ratio: 0.36 % to 0.72 %
Pd - Power Dissipation: 60 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
