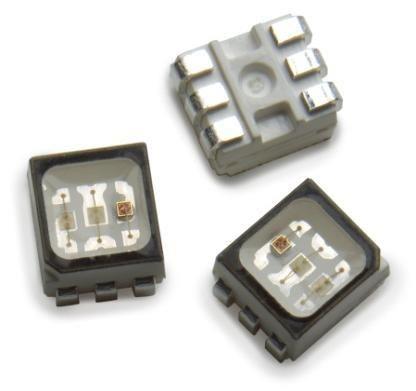

Broadcom ASMT-YTB7-0AA02 Multi-Color LEDs RGB Full Color
ManufacturerBroadcom(View more products from this manufacturer)
ModelASMT-YTB7-0AA02
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 2.8 mm
Height: 1.8 mm
Length: 3.4 mm
Lens Color: Colorless
Lens Shape: Square
Unit Weight: 40 mg
Viewing Angle: 120 deg
Mounting Style: SMD/SMT
Lens Dimensions: 2.3 mm x 2.3 mm
Lens Transparency: Diffused
Illumination Color: RGB
Luminous Intensity: 650 mcd, 1900 mcd, 384 mcd
Moisture Sensitive: Yes
If - Forward Current: 20 mA
Vf - Forward Voltage: 2.1 V, 3.1 V, 3.1 V
Wavelength/Color Temperature: 627 nm, 537 nm, 475 nm
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
