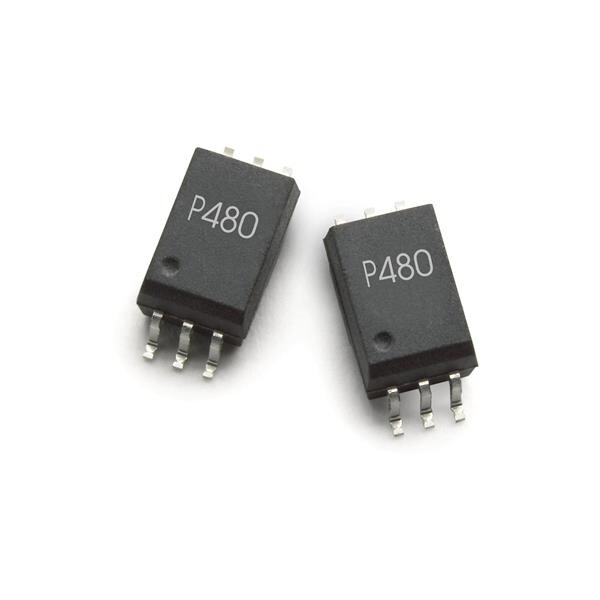

Broadcom ACPL-P480-520E Power Module and Gate Drive Interface Optocoupler 5MBd 3750Vrms

Fall Time: 20 ns

Rise Time: 16 ns

Output Type: Logic Gate Photo IC

Isolation Voltage: 3750 Vrms

Number of Channels: 1 Channel

If - Forward Current: 6 mA

Vf - Forward Voltage: 1.5 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 210 mW

Propagation Delay - Max: 350 ns

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 25 mA
