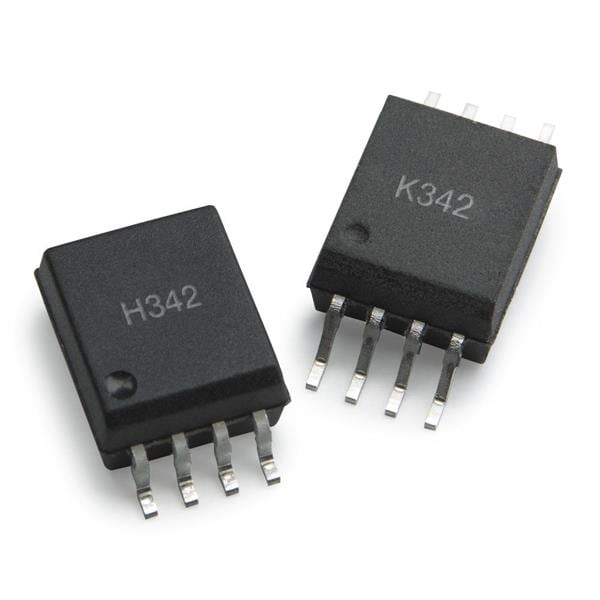

Broadcom ACPL-H342-500E Gate Drive Optocoupler Optocoupler

Fall Time: 18 ns

Rise Time: 22 ns

Output Type: Rail-to-Rail

Mounting Style: SMD/SMT

Isolation Voltage: 3750 Vrms

Number of Channels: 1 Channel

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.55 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 550 mW

Propagation Delay - Max: 350 ns

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 2.5 A
