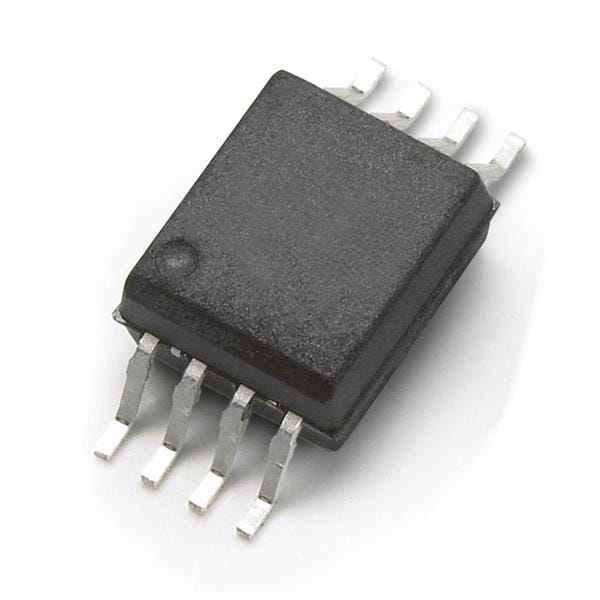

Broadcom ACPL-C87B-000E Optically Isolated Amplifiers Precision Iso-Amp

Width: 6.8 mm

Height: 3.18 mm

Length: 5.85 mm

Gain V/V: 1 V/V

Bandwidth: 100 kHz

Output Type: Digital to Analog Converter - DAC

Unit Weight: 1.210 g

Amplifier Type: Isolation

Isolation Type: Optic

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 230 mA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Ib - Input Bias Current: 100 nA

Operating Supply Current: 15 mA

Operating Supply Voltage: 3 V to 5.5 V

Vos - Input Offset Voltage: 9.9 mV

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
