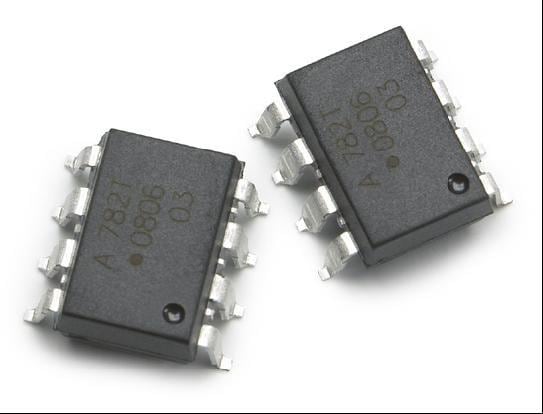

Broadcom ACPL-782T-500E Optically Isolated Amplifiers 100kHz, 3750vrms 30ppm/C Gain Drift

Width: 6.35 mm

Height: 3.56 mm

Length: 9.8 mm

Gain V/V: 8 V/V

Bandwidth: 100 kHz

Output Type: Digital to Analog Converter - DAC

Qualification: AEC-Q100

Amplifier Type: Isolation

Isolation Type: Optic

Mounting Style: SMD/SMT

Isolation Voltage: 3750 Vrms

Number of Channels: 1 Channel

If - Forward Current: 16 mA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Pd - Power Dissipation: 600 mW

Operating Supply Current: 16 mA

Operating Supply Voltage: 4.5 V to 5.5 V

Vos - Input Offset Voltage: 300 uV

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 76 dB
