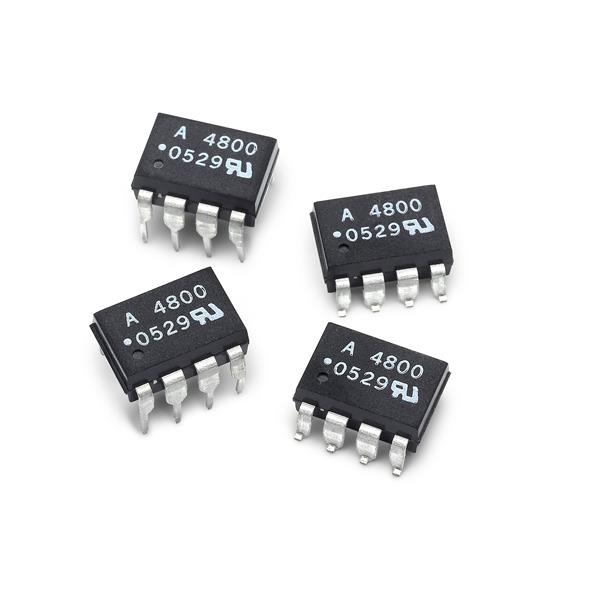

Broadcom ACPL-4800-300E AND Schmitt 4.5-20Vcc 250ns PWD

Width: 6.35 mm

Height: 3.56 mm

Length: 9.65 mm

Fall Time: 20 ns

Rise Time: 16 ns

Output Type: Open Collector

Unit Weight: 2.357 g

Mounting Style: Through Hole

Isolation Voltage: 3750 Vrms

Maximum Baud Rate: 5 MBps

Number of Channels: 1 Channel

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.7 V

Pd - Power Dissipation: 210 mW

Propagation Delay - Max: 350 ns

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 25 mA
