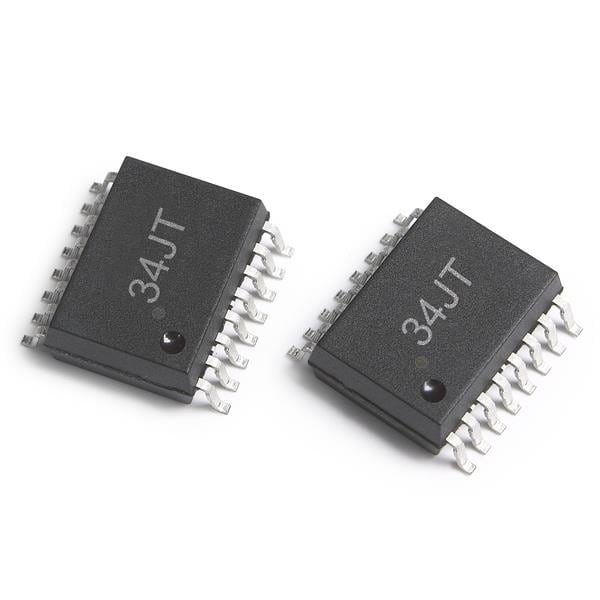

Broadcom ACPL-34JT-500E Logic Output Optocouplers Automotive 2.5A Gate Drive Optocoupler Integrated IGBT DESAT Overcurrent Sensing

Width: 7.493 mm

Height: 3.505 mm

Length: 10.312 mm

Fall Time: 50 ns

Rise Time: 60 ns

Output Type: Photodarlington

Unit Weight: 776.698 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 10 mA

Vf - Forward Voltage: 1.55 V

Vr - Reverse Voltage: 6 V

Pd - Power Dissipation: 580 mW

Operating Supply Voltage: 15 V to 25 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Maximum Continuous Output Current: 2.5 A
