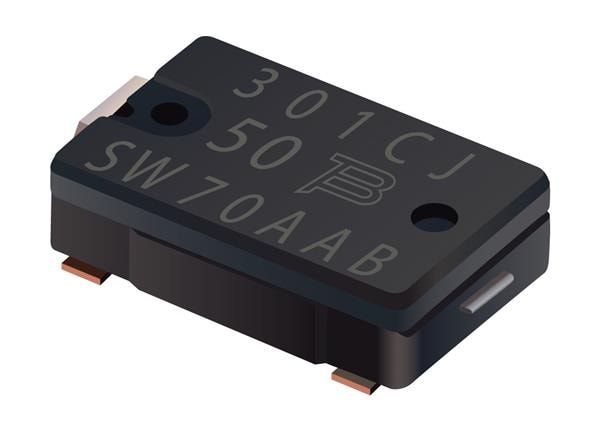

Bourns SW70AAB Thermal Cutoff Devices TCO, Medium Current, SMD, 70C, non Self Hold

Width: 2.8 mm

Height: 0.94 mm

Length: 4.4 mm

Approvals: UL, cUL, TUV

Resistance: 5 mOhms

Hold Current: 3 A

Contact Rating: 1 A

Maximum Voltage: 100 V

Rated Temperature: + 70 C

Reset Temperature: + 49 C

Holding Temperature: + 60 C

Maximum Temperature: + 100 C

Maximum Breaking Current: 2.5 A, 1000 cycles

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 30 C
