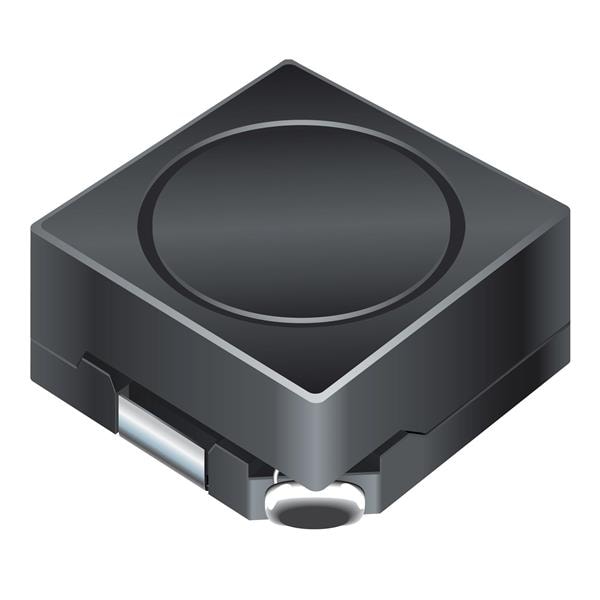

Bourns SRR6040A-390M Power Inductors 39uH 20% SMD 6040 AEC-Q200
ManufacturerBourns(View more products from this manufacturer)
ModelSRR6040A-390M
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 6.7 mm
Height: 4 mm
Length: 6.7 mm
Core Type: Wirewound
Shielding: Shielded
Tolerance: 20 %
Inductance: 39 uH
Application: Automotive
Termination: Standard
Unit Weight: 600 mg
Core Material: Ferrite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 10 kHz
Termination Style: SMD/SMT
Maximum DC Current: 1 A
Maximum DC Resistance: 135 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
