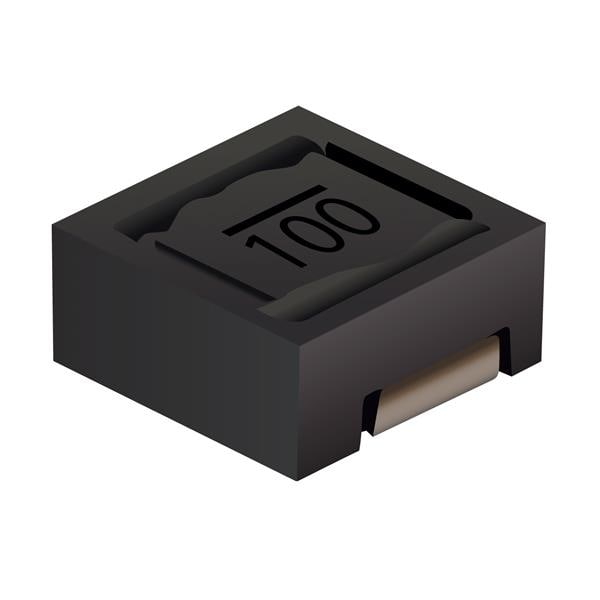

Bourns SRR3818A-100M Power Inductor 1.3A 10uH 20% SMD 3818 AEC-Q200
ManufacturerBourns(View more products from this manufacturer)
ModelSRR3818A-100M
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 3.8 mm
Height: 1.8 mm
Length: 3.8 mm
Core Type: Wirewound
Shielding: Shielded
Tolerance: 20 %
Inductance: 10 uH
Application: Power
Termination: Standard
Unit Weight: 110 mg
Core Material: Ferrite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 1 A
Saturation Current: 650 mA
Maximum DC Resistance: 235 mOhms
Self Resonant Frequency: 40 MHz
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
