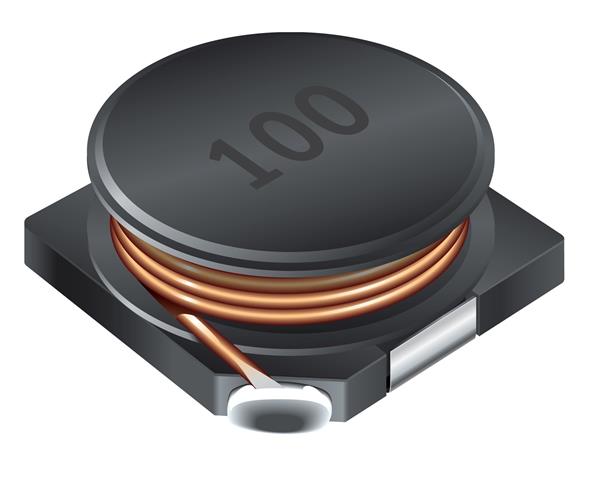

Bourns SDR1045-331K Power Inductor 330uH 10% SMD 1045
ManufacturerBourns(View more products from this manufacturer)
ModelSDR1045-331K
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 10 mm
Height: 4.5 mm
Length: 10 mm
Core Type: Wirewound
Q Minimum: 12
Shielding: Unshielded
Tolerance: 10 %
Inductance: 330 uH
Application: Power
Termination: Standard
Unit Weight: 1.300 g
Core Material: Ferrite
Mounting Style: PCB Mount
Termination Style: SMD/SMT
Maximum DC Current: 620 mA
Saturation Current: 700 mA
Maximum DC Resistance: 1.7 Ohms
Self Resonant Frequency: 4.6 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
