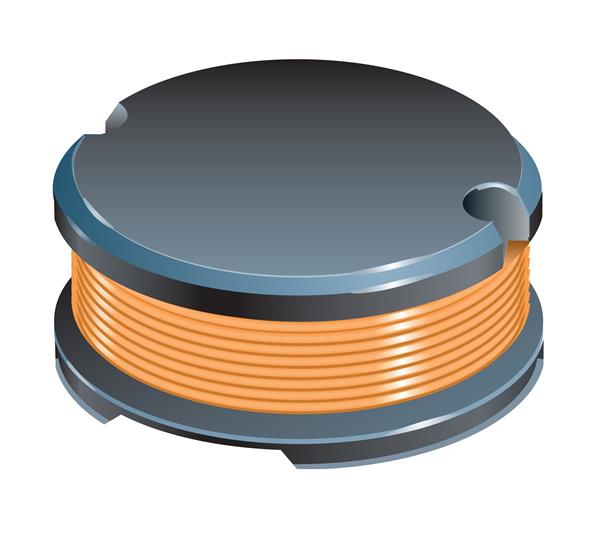

Bourns SDR0603-181KL Power Inductor 180uH 10% SMD 0603
ManufacturerBourns(View more products from this manufacturer)
ModelSDR0603-181KL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 3.9 mm
Diameter: 5.8 mm
Core Type: Wirewound
Q Minimum: 26
Shielding: Unshielded
Tolerance: 10 %
Inductance: 180 uH
Application: Power
Termination: Standard
Unit Weight: 410 mg
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 796 kHz
Termination Style: SMD/SMT
Maximum DC Current: 300 mA
Saturation Current: 500 mA
Maximum DC Resistance: 1.6 Ohms
Self Resonant Frequency: 7 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
