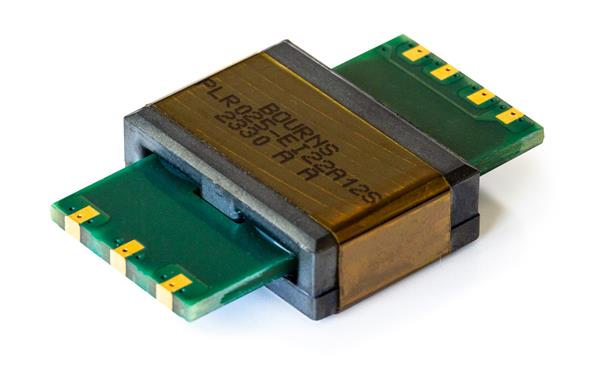

Bourns PLR025-EI22A12S Planar Transformer Planar Transformer, Forward 25W, Vout 12V
ManufacturerBourns(View more products from this manufacturer)
ModelPLR025-EI22A12S
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 23 mm
Height: 7.04 mm
Length: 34 mm
Inductance: 85 uH
Turns Ratio: 5:5:5
Power Rating: 25 W
Mounting Style: SMD/SMT
Primary Winding: Dual Primary Winding
Secondary Winding: Single Secondary Winding
Termination Style: Solder
Operating Frequency: 250 kHz
Primary Voltage Rating: 12 V, 35 V to 57 V
Secondary Current Rating: 2.1 A
Secondary Voltage Rating: 12 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
