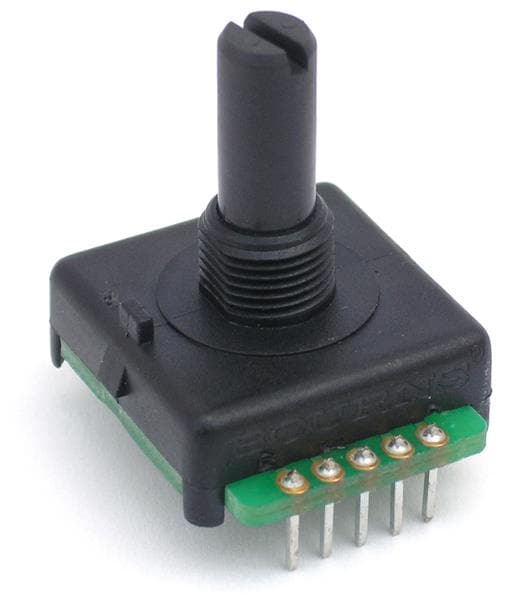

Bourns EAW0J-C24-AE0128L Absolute Digital Output Bushing Mount

Life: 50000 Cycle

IP Rating: IP40

Resolution: 128 PPR

Shaft Type: Flatted

Technology: Rotary

Output Type: 8 bit Code

Unit Weight: 11.220 g

With Switch: Without Switch

Bushing Size: 9 mm x 6.35 mm

Shaft Length: 3/4 in

Bushing Thread: M9 x 0.75

Mounting Style: PCB Mount

Shaft Diameter: 6.32 mm

Bushing Material: Plastic

Size / Dimension: 28 mm x 22 mm

Number of Detents: No Detent

Termination Style: PC Pin

Number of Channels: 8 Channel

Operating Supply Voltage: 10 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
