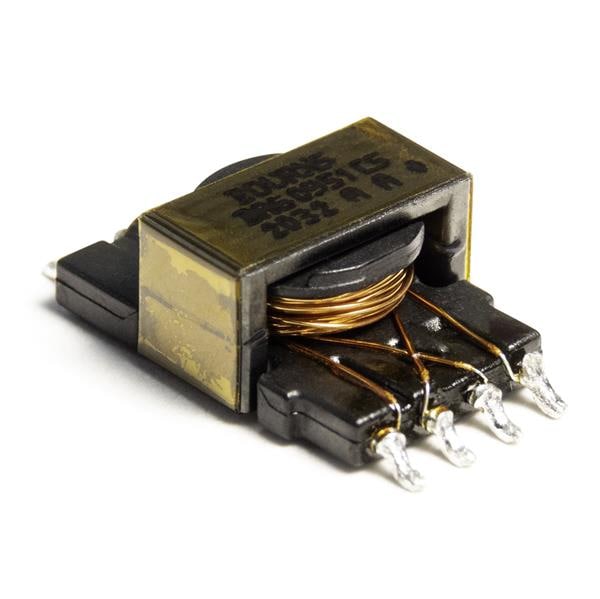

Bourns BA60951CS Flyback Transformers Transformer, Flyback, 17x11x6mm, 25uH
ManufacturerBourns(View more products from this manufacturer)
ModelBA60951CS
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 10.5 mm
Height: 5.97 mm
Length: 13.6 mm
Inductance: 25 uH
Turns Ratio: 1.27, 0.77
Power Rating: 2.25 W
Mounting Style: PCB Mount
Primary Winding: Dual Primary Winding
Secondary Winding: Dual Secondary Winding
Termination Style: SMD/SMT
Operating Frequency: 120 kHz
Primary Voltage Rating: 7 V to 24 V
Secondary Current Rating: 150 mA
Secondary Voltage Rating: 15 V
Maximum Operating Temperature: + 155 C
Minimum Operating Temperature: - 40 C
